GENERAL INFORMATION

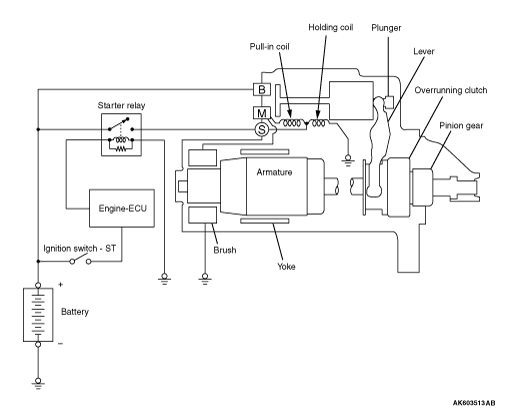

SYSTEM DIAGRAM


<4B1, 6B3>

<BSY>

STARTER MOTOR SPECIFICATIONS


Item
 4B1, 6B3
 BSY
 4HN
Type
 Reduction drive with planetary gear
 -
 -
Rated output kW/V
 1.4/12
 2.0/12
 1.7/12 <CL5>
 1.9/12 <CL6+>
Number of pinion teeth
 8
 22
 13 <CL5>
 11 <CL6+>
