REMOVAL AND INSTALLATION <4B1>


Pre-removal operation
  • Air Cleaner Intake Duct and Air Cleaner Intake Hose Removal (Refer to GROUP 15 - Air Cleaner <4B1> ).
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).
  • Engine Room Under Cover Front A, B, D Removal (Refer to GROUP 51 - Under Cover ).

 Post-installation operation
  • Engine Room Under Cover Front A, B, D Installation (Refer to GROUP 51 - Under Cover ).
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
  • Air Cleaner Intake Duct and Air Cleaner Intake Hose Installation (Refer to GROUP 15 - Air Cleaner <4B1> ).

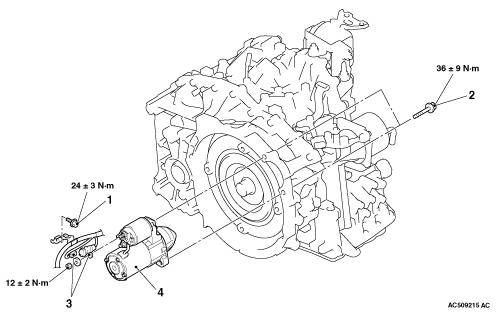

Removal steps
<<A>>
·
 Throttle body assembly mounting bolt (Refer to GROUP 13D - Throttle Body Assembly ).


1.
 Wiring harness bracket connection


2.
 Starter mounting bolt
<<B>>
3.
 Starter connector and terminal
<<B>>
4.
 Starter assembly

REMOVAL SERVICE POINTS

<<A>> THROTTLE BODY ASSEMBLY MOUNTING BOLT REMOVAL
1.Remove the throttle body assembly together with the water hose from the inlet manifold.
2.Tie the removed throttle body assembly with a string at a position where it will not interfere with the operation.

<<B>> STARTER CONNECTOR AND TERMINAL/STARTER ASSEMBLY REMOVAL
1.Slide the starter assembly, and remove the starter connector and terminal.
2.Remove the starter assembly from the lower front of the engine.
