REMOVAL AND INSTALLATION <4B1>


Pre-removal Operation
  • Engine Coolant Draining (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Replacement ).
  • Air Cleaner Intake Hose and Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner <4B1> ).
  • Oil Filler Tube Assembly Removal (Refer to GROUP 23A - Transmission Assembly ).

 Post-installation Operation
  • Oil Filler Tube Assembly Installation (Refer to GROUP 23A - Transmission Assembly ).
  • Air Cleaner Intake Hose and Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner <4B1> ).
  • Engine Coolant Refilling (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Replacement ).

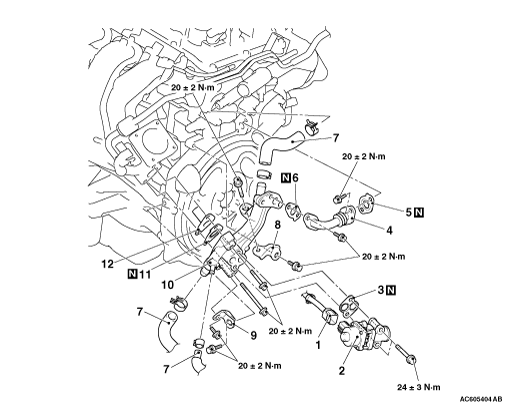

Removal steps


1.
 EGR valve connector


2.
 EGR valve

>>B<<
 3.
 EGR valve gasket

>>A<<
 4.
 EGR valve pipe

>>A<<
 5.
 EGR pipe gasket

>>A<<
 6.
 EGR pipe gasket


7.
 Water hose connection

>>A<<
 8.
 EGR equipment stay A

>>A<<
 9.
 EGR equipment stay B


·
 Throttle body assembly (Refer to GROUP 13D - Throttle Body Assembly )

>>A<<
 10.
 EGR valve stay

>>A<<
 11.
 EGR pipe gasket


12.
 EGR equipment pipe

INSTALLATION SERVICE POINTS

>>A<< EGR PIPE GASKET/EGR VALVE STAY/EGR EQUIPMENT STAY B/EGR EQUIPMENT STAY A/EGR PIPE GASKET/EGR VALVE PIPE INSTALLATION


1.Install each gasket with its protrusion being positioned as shown in the figure.

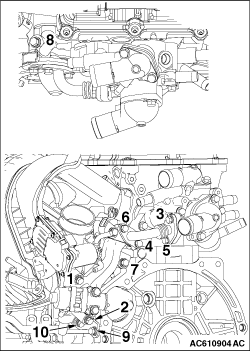

2.Tighten each mounting bolt to the specified torque in the order as shown in the figure.
Tightening torque: 20 ± 2 N·m

>>B<< EGR VALVE GASKET INSTALLATION

Install the EGR valve gasket so that its shaded position is set as shown in the figure.
