A/T-ECU REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Side lower panel assembly removal and installation (Refer to GROUP 52A - Instrument Panel Assembly .)

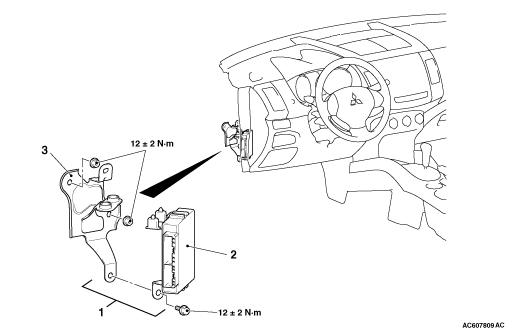

Removal steps


1.
 A/T-ECU and A/T-ECU bracket


2.
 A/T-ECU


3.
 A/T-ECU bracket
