REMOVAL AND INSTALLATION



caution
  • Do not disassemble the rear wheel hub assembly.
  • The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetised. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
  • When the rear wheel hub assembly is removed/installed, make sure that the wheel speed detection magnetic encoder (integrated with inner oil seal) does not contact with surrounding parts to avoid damage.
  • When removing and installing the rear wheel speed sensor, make sure that its pole piece at the end does not contact with surrounding parts to avoid damage.
  • The part indicated with * is the bolt with friction coefficient stabilizer. In removal, replace it with a new one.

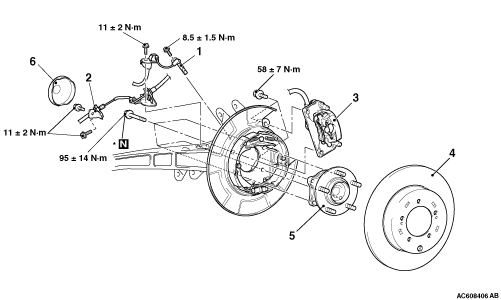

Removal steps


1.
Rear wheel speed sensor


2.
Brake hose bracket
<<A>>

3.
Caliper assembly


4.
Brake disc


5.
Rear wheel hub assembly

>>A<<
6.
Rear sensor cover

REMOVAL SERVICE POINTS



<<A>>CALIPER ASSEMBLY REMOVAL


1.Remove the caliper assembly with brake hose.
2.Retain the removed caliper assembly with a wire and the like to prevent from falling.

INSTALLATION SERVICE POINT



>>A<< REAR SENSOR COVER INSTALLATION



Align the marking with the trailing arm hole as shown in the figure and install it.
