REMOVAL AND INSTALLATION


caution Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

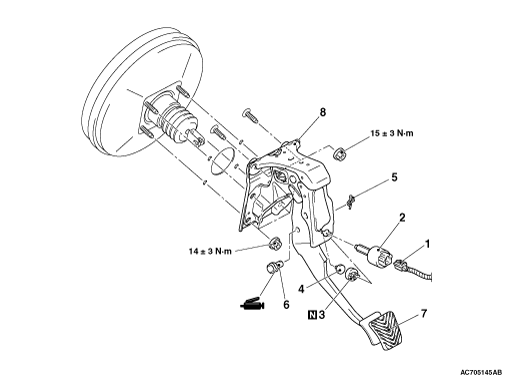

Removal steps


1.
 Harness connector connection


2.
 Stop lamp switch


3.
 Pedal clip


4.
 Pedal stopper


5.
 Snap pin


6.
 Pin assembly


7.
 Pedal pad
<<A>>
8.
 Brake pedal assembly

REMOVAL SERVICE POINT

<<A>> BRAKE PEDAL ASSEMBLY REMOVAL
From the engine compartment side, remove the brake pedal assembly while pulling the brake booster.
