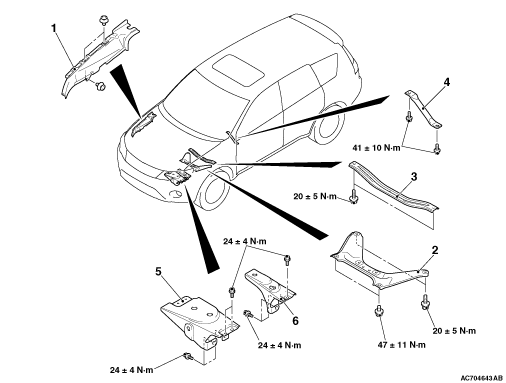

REMOVAL AND INSTALLATION






Fender inner garnish removal <2000, 2200>


1.
Fender inner garnish



Front floor backbone brace removal


2.
Front floor backbone brace <2000, 2200>


3.
Front floor backbone brace <2400>


4.
Front floor backbone brace <M/T>



Battery bracket removal steps <2000, 2200, 3000>


·
Battery tray (Refer to GROUP 54A - Battery .)


5.
Battery bracket (front side)


6.
Battery bracket (rear side)
