REMOVAL AND INSTALLATION







Exterior transmitter antenna assembly (front: RH) removal steps


·
Centre pillar trim, upper <RH> (Refer to GROUP 52A - Interior Trim ).


1.
Exterior transmitter antenna assembly (front: RH)



Exterior transmitter antenna assembly (front: LH) removal steps


·
Centre pillar trim, upper <LH> (Refer to GROUP 52A - Interior Trim ).


2.
Exterior transmitter antenna assembly (front: LH)



Antenna and buzzer assembly removal steps


·
Rear bumper assembly (Refer to GROUP 51 - Rear Bumper Assembly ).


3.
Antenna and buzzer assembly


4.
Exterior transmitter antenna assembly (tailgate)


5.
Buzzer


6.
Bracket



Interior transmitter antenna assembly (front) removal steps


·
Rear floor console assembly (Refer to GROUP 52A - Rear Floor Console Assembly ).


7.
Interior transmitter antenna assembly (front)



Interior transmitter antenna assembly (rear: RH) removal steps


·
Quarter trim, lower <RH> (Refer to GROUP 52A - Interior Trim ).


8.
Interior transmitter antenna assembly (rear: RH)

caution To remove the driver airbag module, refer to GROUP 52B - Service Precautions and Driver/Front Passenger’s Air Bag Module and Clock Spring .
Pre-removal operation
  • Lower panel and steering column cover removal (Refer to GROUP 52A - Instrument Panel Assembly ).
  • Clock spring column switch assembly removal (Refer to GROUP 37 - Steering Shaft or GROUP 52B - Driver/Front Passenger’s Air Bag Module and Clock Spring ).

Post-installation operation
  • Clock spring column switch assembly installation (Refer to GROUP 37 - Steering Shaft or GROUP 52B - Driver/Front Passenger’s Air Bag Module and Clock Spring ).
  • Lower panel and steering column cover installation (Refer to GROUP 52A - Instrument Panel Assembly ).

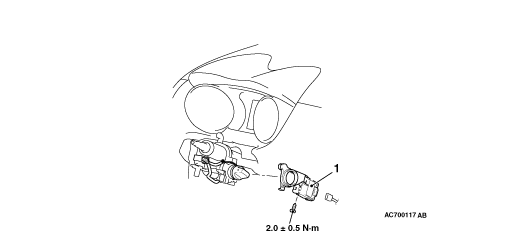

Receiver antenna module removal

>>A<<
1.
Receiver antenna module

INSTALLATION SERVICE POINT



>>A<< RECEIVER ANTENNA MODULE INSTALLATION
