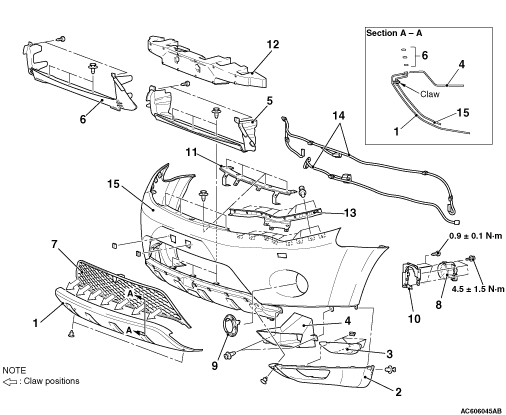

Disassembly steps
|
|
|
1.
|
Front bumper extension A
|
|
|
2.
|
Front bumper extension B
|
|
|
3.
|
Front bumper air intake cover
|
|
|
4.
|
AT oil cooler duct <Vehicles with AT oil cooler>
|
|
|
5.
|
Front bumper air guide duct <Petrol-powered vehicles>
|
|
|
6.
|
Front bumper air guide duct <Diesel-powered vehicles>
|
|
|
7.
|
Front bumper grille
|
|
|
8.
|
Front fog lamp <Vehicles with front fog lamps>
|
|
|
9.
|
Front fog lamp bezel <Vehicles with front fog lamps>
|
|
|
10.
|
Front fog lamp bracket <Vehicles with front fog lamps>
|
|
|
11.
|
Front bumper reinforcement A
|
|
|
12.
|
Front bumper core
|
|
|
13.
|
Front bumper reinforcement B
|
|
|
14.
|
Front bumper harness
|
|
|
15.
|
Front bumper face
|
