REMOVAL AND INSTALLATION

caution

Before installing the roof drip moulding, the windshield adhesive remained on the clip installation points should be removed 3 to 5 mm from the edge of the glass. However, if the windshield adhesive has not been cured yet, it is not necessary to remove it.

		Roof drip moulding removal steps

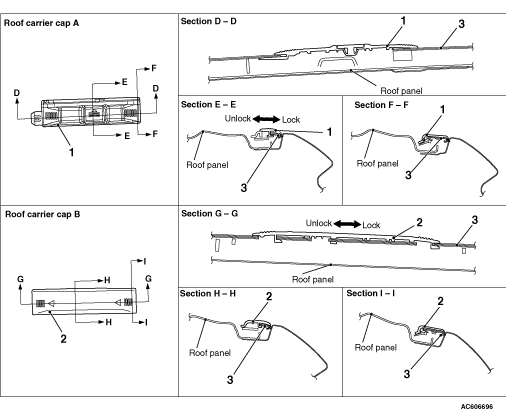

	1.	Roof carrier cap A <Vehicles with commercial roof rail>
	2.	Roof carrier cap B <Vehicles with commercial roof rail>
<<A>>	3.	Roof drip moulding
	4.	Clip A (Red)
	5.	Clip B (Orange)
	6.	Clip C (Pink)
	7.	Clip D
	8.	Clip E

REMOVAL SERVICE POINT

<<A>> ROOF DRIP MOULDING REMOVAL

The following tools are recommended for removing the roof drip mouldings.
Ornament remover set (parts number JS000004)
1.Remover A (parts number JS000001)
2.Remover B (parts number JS000003)
3.Remover C (parts number JS000002)
INQUIRY
Service Tool Group Manager
No.2 Sales Promotion Dept.
Marketing Operation Office
MITSUBISHI AUTOMOTIVE ACCESSORIES & PRODUCTS CO.,LTD.
FAX: + 81-3-5445-0846
e-mail: sst.map@mitsubishi-motors.com
