Remove the windshield wiper motor and inspect it at the harness connector.
|
|
|

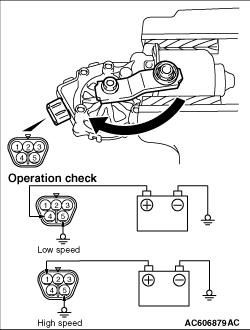

Connect the battery to the windshield wiper motor to inspect the operation of motor rotation at low or high speed.
|
|
|

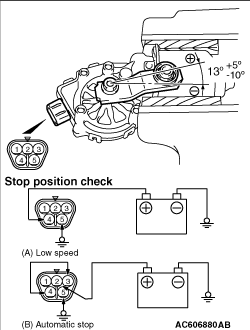

1.Connect the battery to the windshield wiper motor as shown in the illustration (A).
|
|
|
2.Run the windshield wiper motor at low speed, then disconnect the battery in the middle of the motor rotation and check to see that the motor stops.
|
|
|
3.Connect the battery to the windshield wiper motor as shown in the illustration (B).
|
|
|
4.Connect the terminals of the windshield wiper motor connector as shown in the illustration (B).
|
|
|
5.Check to see that the windshield wiper motor runs at low speed and then stops at the automatic stop position.
|
|
|
Check the windshield wiper switch (mist, intermittent, low speed and high speed) from the ETACS diagnosis codes for proper operations(Refer to GROUP 54A, ETACS  ).
|
