REMOVAL AND INSTALLATION


caution For the removal of the headlining, refer to GROUP 52B - Service Precautions (Refer to ) and Curtain Air Bag Module (Refer to ).

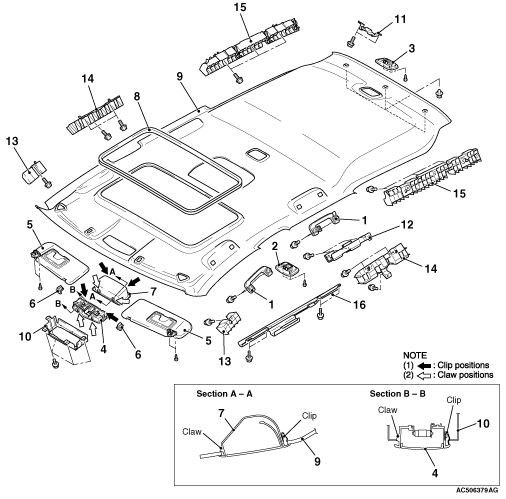

Removal steps


·
 Quarter trim upper, centre pillar trim upper, and front pillar trim (Refer to ).


·
 Rear display (Refer to GROUP 54A - Rear Display ).


1.
 Assist grip


2.
 Rear room lamp assembly


3.
 Cargo room lamp assembly


·
 Front room lamp connector


·
 Sunroof switch connector <Vehicles with sunroof>


4.
 Front room lamp assembly


5.
 Sun visor
<<A>>
6.
 Sun visor holder


7.
 Sunglass pocket <Vehicles without sunroof>


8.
 Sunroof lid inner weather strip rear <Vehicles with sunroof>
<<B>>
9.
 Headlining


10.
 Front room lamp bracket


11.
 Cargo room lamp bracket


12.
 Assist grip bracket


13.
 Front energy absorber roof side box <Vehicles without curtain air bag>


14.
 Centre energy absorber roof side box <Vehicles without curtain air bag>


15.
 Rear energy absorber roof side box <Vehicles without curtain air bag>


16.
 Front energy absorber roof bracket <Vehicles with sunroof and air bag>

REMOVAL SERVICE POINTS

<<A>> SUN VISOR HOLDER REMOVAL

Insert the special tools ornament remover (MB990784) into the sun visor holder from its left and right sides to disengage the claws on the sun visor holder sides.

<<B>> HEADLINING ASSEMBLY REMOVAL

To remove the clip, insert a vinyl cord into a clearance between the clip and the headlining, and pass it around the clip. Then, pull out the clip downwards while pulling the vinyl cord.
