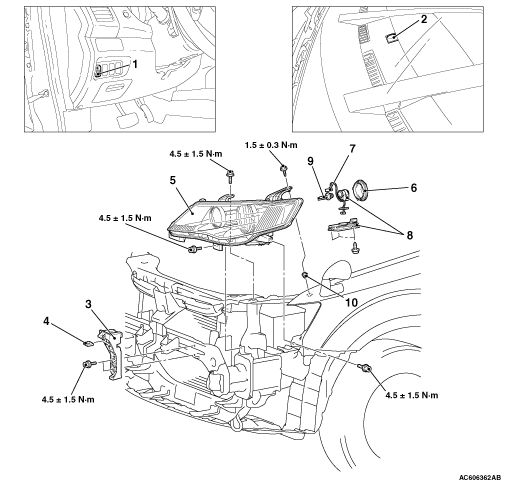

REMOVAL AND INSTALLATION



Headlamp levelling switch removal steps <Vehicles with headlamp manual levelling system>


·
 Lower panel assembly (Refer to GROUP 52A - Instrument Panel Assembly .)


1.
 Headlamp levelling switch



Photo sensor removal <Vehicles without lighting control sensor>


·
 Centre air outlet, centre panel assembly and centre upper box assembly (Refer to GROUP 52A - Instrument Panel ).


2.
 Photo sensor



Headlamp Removal Steps


·
 Front bumper assembly (Refer to GROUP 51 - Front Bumper Assembly .)


3.
 Front bumper bracket


4.
 Square nut
<<A>>
5.
 Headlamp assembly


6.
 Headlamp bulb socket cover <Vehicles with discharge headlamp>


7.
 Connector <Vehicles with discharge headlamp>


8.
 Headlamp control unit <Vehicles with discharge headlamp>
<<B>>
9.
 Headlamp bulb <Vehicles with discharge headlamp>


10.
 Grommet

REMOVAL SERVICE POINTS

<<A>> HEADLAMP ASSEMBLY REMOVAL
When removing the headlamp assembly of the right side, remove the washer fluid inlet.

<<B>> BULB REMOVAL <VEHICLES WITH DISCHARGE HEADLAMP>

caution Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.
1.Twist the socket cover to remove.

2.Disconnect the igniter.
3.Release the bulb securing spring, and remove the bulb.
