LIGHTING CONTROL SENSOR REMOVAL AND INSTALLATION

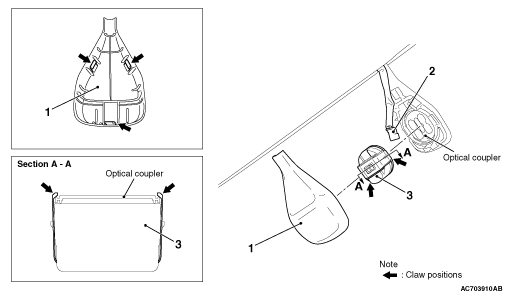

Removal Steps


1.
Lighting control sensor cover


2.
Connector
<<A>>
>>A<<
3.
Lighting control sensor

REMOVAL SERVICE POINT



<<A>> LIGHTING CONTROL SENSOR REMOVAL



Lift the claws on both sides of the clamp, and remove the lighting control sensor.

INSTALLATION SERVICE POINT



>>A<< LIGHTING CONTROL SENSOR INSTALLATION



  • Mount the lighting control sensor onto the optical coupler, and then connect the connector.
  • When reusing the lighting control sensor or when the lighting control sensor is pushed to check the installation condition, install the connector and the lighting control sensor cover and wipe the windshield thoroughly. When the windshield is dry, execute the lighting control sensor (rain sensor) adaptation. <Refer to GROUP 51 - Lighting Control Sensor (Rain Sensor) Adaptation >.
