REMOVAL AND INSTALLATION


caution
  • To remove the driver airbag module, refer to GROUP 52B - Service Precautions and Driver/Front Passenger’s Air Bag Module and Clock Spring .
  • After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to GROUP 35C, On-vehicle Service - Steering Wheel Sensor Calibration .) <Vehicles with ASC>

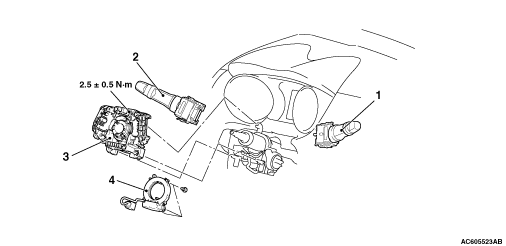

Removal Steps


·
 Steering column cover (Refer to GROUP 52A - Instrument Panel .)


1.
 Wiper/washer switch


2.
 Lighting switch


·
 Steering wheel assembly (Refer to GROUP 52B - Driver’s Front Passenger’s Air Bag Module and Clock Spring .)


·
 Paddle shift switch (Refer to GROUP 52B - Driver’s Front Passenger’s Air Bag Module and Clock Spring ).


·
 Clock spring (Refer to GROUP 52B - Driver’s Front Passenger’s Air Bag Module and Clock Spring .)


3.
 Column switch body


4.
 Steering wheel sensor (Refer to GROUP 35C - Steering wheel sensor .) <Vehicles with ASC>
