Diagnosis Item 15: Diagnose when the M.U.T.-III cannot receive the data sent by KOS-ECU


caution When servicing a CAN bus line, earth yourself by touching a metal object such as an unpainted water pipe. If you fail to do, a component connected to the CAN bus line may be broken.






FUNCTION



TROUBLE JUDGMENT CONDITIONS



TROUBLESHOOTING HINTS



  • Malfunction of the connector [joint connector (CAN1) or KOS-ECU connector improperly connected]
  • Malfunction of the wiring harness [open circuit between the KOS-ECU connector and the joint connector (CAN1), or power supply circuit to the KOS-ECU]
  • Malfunction of the KOS-ECU

DIAGNOSIS PROCEDURE
caution The strand end of the twist wire should be within 10 cm from the connector. For details refer to .

Q. Is the check result normal?
Go to Step 2.
Repair the defective connector.

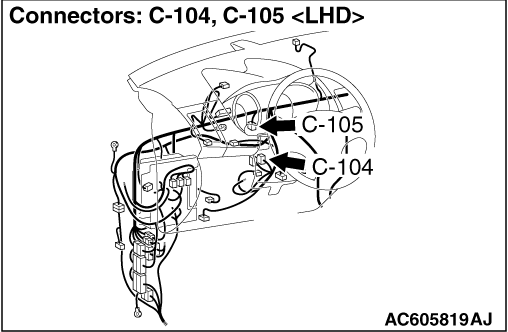

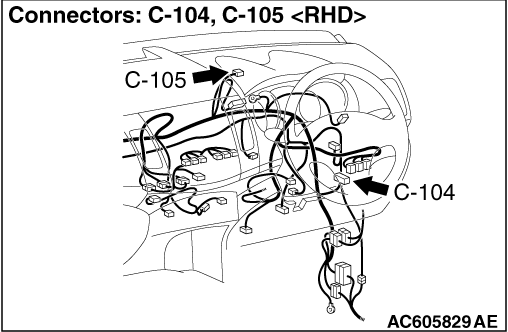

STEP 2. Check the wiring harness between C-104 KOS-ECU connector and C-105 joint connector (CAN1)
caution Strictly observe the specified wiring harness repair procedure. For details refer to .
(1)Disconnect KOS-ECU connector and joint connector (CAN1), and check the following wiring harness.
(2)Check that there is continuity between C-104 KOS-ECU connector terminal No.1 and C-105 joint connector (CAN1) terminal No.8 <CAN_H>
OK: Continuity exists (2 Ω or less)
(3)Check that there is continuity between C-104 KOS-ECU connector terminal No.2 and C-105 joint connector (CAN1) terminal No.21 <CAN_L>
OK: Continuity exists (2 Ω or less)

Q. Is the check result normal?
Check the power supply circuit of the KOS-ECU. Refer to Group 42B - Troubleshooting .
Repair the wiring harness.
