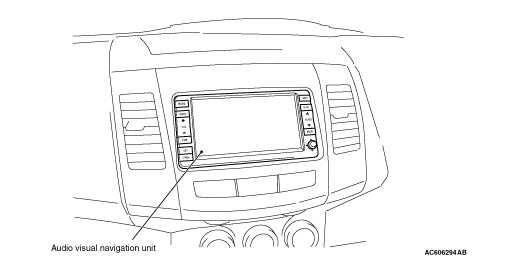

GENERAL INFORMATION

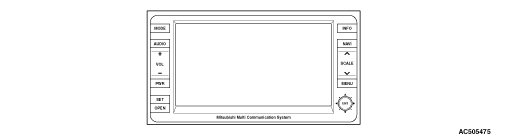

OPERATION PART
| Screen (function) |
Contents |
| Navigation screen |
Displays navigation functions such as road map,
search, guidance and information retrieval. |
| Screen of current vehicle location |
Information on vehicle’s current position
(such as latitude, longitude and GPS reception status) |
| CD screen |
Plays a CD (including CD-R/CD-RW) loaded
in the CD drive. |
| MP3/WMA screen |
Plays MP3/WMA data. |
| DVD screen |
Plays a DVD loaded in the DVD drive. |
| Music server screen |
Plays music recorded in the hard disk drive and
records a music CD. |
| Rear display screen |
Displays image via a DVD drive-incorporated rear
seat 9-inch wide LCD display. |
| Radio screen |
Displays available broadcast stations and channels. |
| Drive information |
Displays the average fuel consumption, instantaneous fuel consumption, possible
cruising distance, driving time, and the lap time. |
| Environmental data |
Displays the atmospheric pressure*, altitude* and
the ambient temperature. |
| Air conditioner information |
Displays air conditioner information. |
| ETACS function customisation |
ETACS-ECU customisation function |
| Calendar |
Displays the calendar. |
| note | *: May not be displayed depending on the engine model. |
NAVIGATION FUNCTION
- The system can load a large-size map data.
- It is compatible with nine languages (English, Germany, French,
Spanish, Italian, Portuguese, Dutch, Swedish and Danish).
- Most sophisticated LSI has been used as one for car navigation
system.
note *LSI stands for Large Scale Integration, and is a large-scale integrated circuit (IC) containing between 1,000 and 100,000 circuit elements. - A voice guidance speaker can be selected in accordance with R.H.
drive vehicles and L.H. drive vehicles.

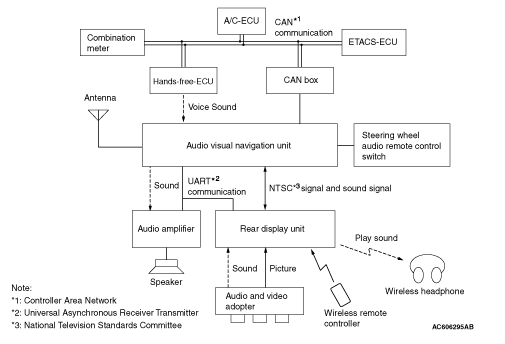

SYSTEM BLOCK DIAGRAM
ETACS function customisation function
| Group name |
Setting item |
Setting value |
| Keyless Entry System |
Turn Signal Lights Answerback |
Lock:Once Unlock:Twice (default) |
| Lock:Once Unlock:Off |
||
| Lock:Off Unlock:Twice |
||
| Lock:Twice Unlock:Once |
||
| Lock:Off Unlock:Once |
||
| Lock:Twice Unlock:Off |
||
| Lock:Off Unlock:Off |
||
| Multi Mode Keyless Entry System <vehicles with electric retractable remote controlled door mirror> |
Off |
|
| Power Window, Door Mirror:Open & Close |
||
| Power Window:Close Door Mirror:Open & Close (default) |
||
| Door Mirror:Open & Close |
||
| Keyless Operation System |
Turn Signal Lights Answerback |
Lock:Once Unlock:Twice (default) |
| Lock:Once Unlock:Off |
||
| Lock:Off Unlock:Twice |
||
| Lock:Twice Unlock:Once |
||
| Lock:Off Unlock:Once |
||
| Lock:Twice Unlock:Off |
||
| Lock:Off Unlock:Off |
||
| Multi Mode Keyless Operation System <vehicles
with electric retractable remote controlled door mirror> |
Off |
|
| Power Window, Door Mirror:Open & Close |
||
| Power Window:Close Door Mirror:Open & Close (default) |
||
| Door Mirror:Open & Close |
||
| Door Entry and Engine Start Function |
Both Function On (default) |
|
| Door Entry Function On |
||
| Engine Start Function On |
||
| Both Function Off |
||
| Time for Remote Unlock Inactivation after Locking |
Off |
|
| 3 seconds (default) |
||
| 5 seconds |
||
| Wipers |
Windshield Wipers Intermittent Operation <vehicles
without lighting control sensor> |
4 seconds |
| Variable |
||
| Variable & Speed Sensitive (default) |
||
| Windshield Wipers Intermittent Operation <vehicles
with lighting control sensor> |
4 seconds |
|
| Variable |
||
| Variable & Speed Sensitive |
||
| Variable & Rain Sensitive (default) |
||
| Wipers Linked to Washer |
Off |
|
| On (default) |
||
| Rear Wiper Intermittent Interval |
0 seconds |
|
| 4 seconds |
||
| 8 seconds (default) |
||
| 16 seconds |
||
| Rear Wiper Continuous Operation |
Off (default) |
|
| On |
||
| Exterior Lamps/Interior Lamps |
Headlamp Auto-cutout Function |
Off |
| On (default) |
||
| Sensitivity for Auto Light <vehicles without lighting
control sensor> |
Somewhat Early |
|
| Normal (default) |
||
| Somewhat Late |
||
| Late |
||
| Sensitivity for Auto Lamp <vehicles with lighting
control sensor> |
Early |
|
| Somewhat Early |
||
| Normal (default) |
||
| Somewhat Late |
||
| Late |
||
| Auto Lamp Linked to Wiper |
Off (default) |
|
| On |
||
| Interior Lamp Auto-cutout Time |
Off |
|
| 3 minutes |
||
| 30 minutes (default) |
||
| 60 minutes |
||
| Duration Room Lamp Remains In after Door is Closed |
0 seconds |
|
| 7.5 seconds |
||
| 15 seconds (default) |
||
| 30 seconds |
||
| 60 seconds |
||
| 120 seconds |
||
| 180 seconds |
||
| Power window |
Timer Function after Ignition Switch Off |
0 seconds |
| 30 seconds (default) |
||
| 180 seconds |
||
| 600 seconds |
||
| Open Operation after Ignition Switch Off |
On (default) |
|
| Off |
||
| Power Window Position Prohibited by Lock-switch |
Except Driver Door |
|
| All Doors (default) |
||
| Turn Signal |
Operation in Key Position |
Ignition Switch On or Accessory |
| Ignition Switch On (default) |
||
| Lane-change Signals (Flash Three Times with 1 Touch) |
Off |
|
| On (default) |
||
| Power Door Locks |
Automatic Relocking after Unlocked by Remote |
30 seconds (default) |
| 60 seconds |
||
| 120 seconds |
||
| 180 seconds |
||
| Automatic Unlock when Transmission Shifted to Park |
Off (default) |
|
| On |
||
| On only when Power Window is Unlocked |
||
| Others |
Auto Fold Mirrors <vehicles without keyless entry
system or KOS> |
No Auto Open/Close |
| Open by Vehicle Speed (default) |
||
| Open/Close by IG On/Off and Driver Door Open/Close |
||
| Auto Fold Mirrors <vehicles with keyless entry
system or KOS> |
No Auto Open/Close |
|
| Open by Vehicle Speed (default) |
||
| Open/Close by IG On/Off and Driver Door Open/Close |
||
| Open/Close by Keyless Entry (or Operation) Lock/Unlock |
||
| Auto Cut of ACC Power |
No Auto Cut (default) |
|
| Auto Cut after 30 minutes |
||
| Auto Cut after 60 minutes |
