No.
|
Standard measurement point
|
Hole shape
|
Size mm
|

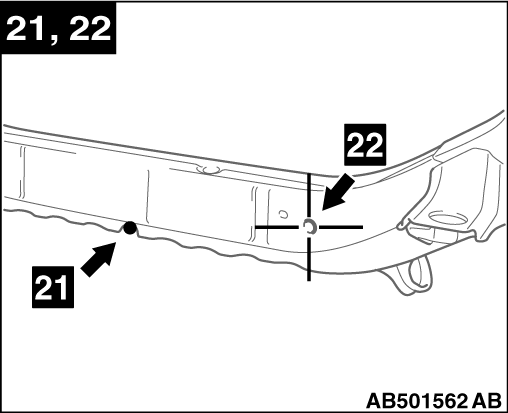

21
|
Front end crossmember upper positioning lug (Body centre point)
|
-
|
-
|
22
|
Centre of front bumper bracket positioning hole
|
Round
|
13
|
23
|
Centre of front bumper bracket positioning hole
|
Round
|
13
|
24
|
Centre of front bumper beam mounting hole
|
Round
|
9
|
25
|
Centre of front bumper beam mounting hole
|
Round
|
9
|
26
|
Centre of front bumper beam mounting hole
|
Round
|
9
|
27
|
Centre of front end upper bar mounting hole
|
Round
|
6.6
|
28
|
Centre of front end upper bar mounting hole
|
Round
|
6.6
|

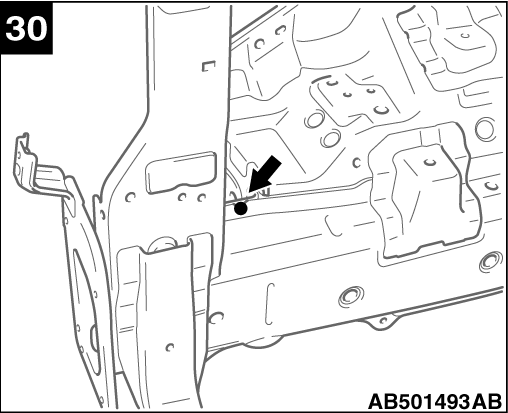

29
|
Front sidemember inner positioning lug
|
-
|
-
|
30
|
Front sidemember inner positioning lug
|
-
|
-
|
31
|
Centre of front end upper bar side positioning hole
|
Round
|
5
|
32
|
Centre of front strut mounting hole
|
Round
|
11.5
|
33
|
Cowl top lower panel positioning notch (Body centre point)
|
-
|
-
|
34
|
Centre of hood hinge mounting hole
|
Round
|
9
|
35
|
Corner of roof panel
|
-
|
-
|
