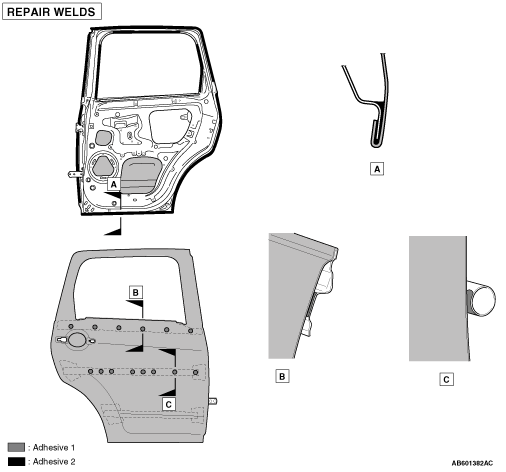

REAR DOOR OUTER PANEL (ADHESION TYPE)

---

• Adhesive 1: Urethane body sealer
  Brand : 3M ATD Part No.08360, 08684, 08782 or equivalent

• Adhesive 2: Epoxyayresin adhesive
  Brand : 3M ATD Part No.8115 or equivalent


---

NOTE ON REPAIR WORK

---

INSTALLATION

1.When installing the rear door outer panel, grind and remove the paint, etc. from the bonded surface of the outer panel to ensure the bonding strength. After the removal, degrease it.

2.Install the outer panel and hem it. Wipe off the excessive adhesive and finish it.
