INSPECTION
CLUTCH INTERLOCK SWITCH CONTINUITY CHECK |
 |
If continuity exists (2Ω or less) when the shaft is pressed to the value shown
in the figure or more, and continuity does not exist when the shaft is released, the clutch
interlock switch is in good condition. |
CLUTCH PEDAL ASSEMBLY CHECK |
 |

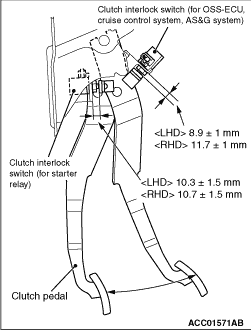

When you operate the clutch pedal as shown, each clutch interlock switch mounting must
satisfy the specified dimension. If not, replace the clutch pedal assembly. |
