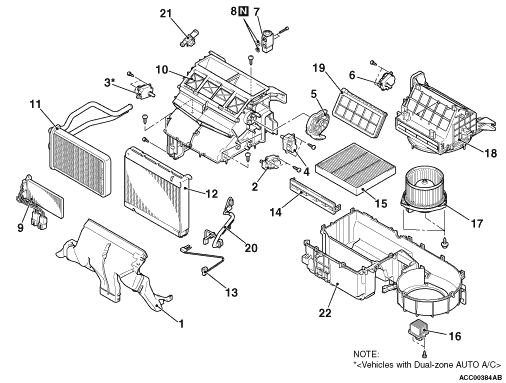

Disassembly steps
|
|
|
1.
|
Foot duct
|
|
|
2.
|
Air mixing damper control motor <Vehicles with Single-zone AUTO A/C>
or Air mixing damper control motor (driver’s side) <Vehicles with Dual-zone AUTO
A/C>
|
|
|
3.
|
Air mixing damper control motor (passenger’s side) <Vehicles
with Dual-zone AUTO A/C>
|
|
|
4.
|
Mode selection damper control motor
|
|
|
5.
|
Mode lever
|
|
|
6.
|
Outside/Inside air selection damper control motor
|
|
|
7.
|
Expansion valve
|
|
|
8.
|
O-ring
|
|
|
9.
|
PTC heater
|
|
|
10.
|
Upper case assembly
|
|
|
11.
|
Heater core
|
|
|
12.
|
Evaporator
|
|
|
13.
|
Fin thermo sensor
|
|
|
14.
|
Clean air filter cover
|
|
|
15.
|
Clean air filter
|
|
|
16.
|
Power transistor
|
|
|
17.
|
Blower motor
|
|
|
18.
|
Blower case assembly
|
|
|
19.
|
Outside/inside air selection damper
|
|
|
20.
|
Wiring harness
|
|
|
21.
|
Aspirator
|
|
|
22.
|
Lower case
|
