SUPPORT POSITIONS FOR A GARAGE JACK,
RIGID RACKS, SINGLE-POST LIFT OR DOUBLE-POST LIFT

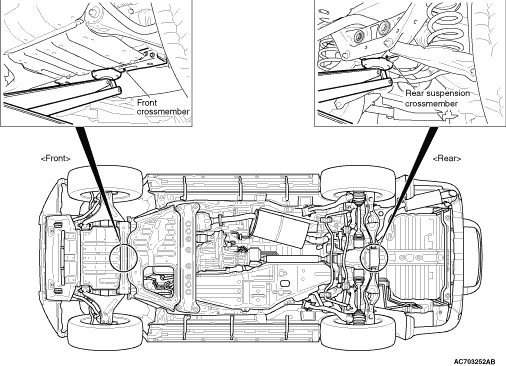

GARAGE JACK
caution
Do not support the vehicles at locations
other than specified supporting points. Doing so will cause damage, etc.
Never support any point other than the specified one, or that point will be deformed.

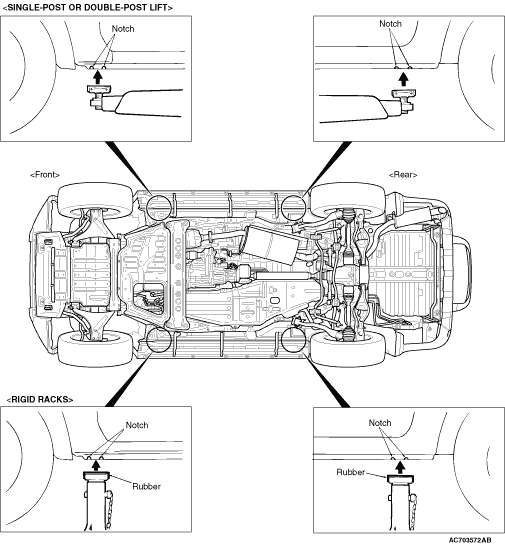

RIGID RACKS AND A SINGLE-POST LIFT OR DOUBLE-POST LIFT
caution
If rubber attachments with grooves
that are too thick are used at the front support positions, the front fender may become bent,
so be sure to use rubber attachments with groove thicknesses of 18 mm or less.
If attachments which are not high enough are used, they may damage areas such as
the side step. Be sure to use attachments which are high enough, or remove the side step if
not using attachments.
