REMOVAL AND INSTALLATION

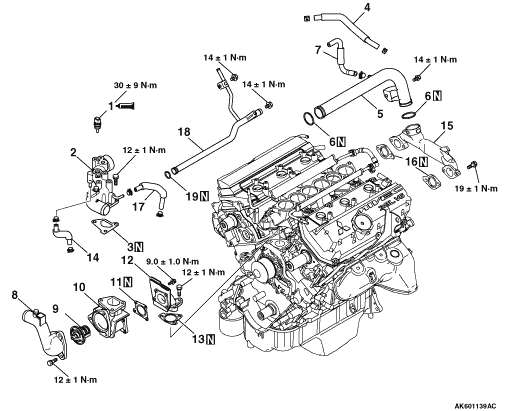

Removal steps

>>D<<
 1.
 Coolant temperature sensor


2.
 Water outlet fitting


3.
 Water outlet fitting gasket


4.
 Blow-by hose

>>A<<
 5.
 Water outlet pipe

>>A<<
 6.
 O-ring


7.
 Water hose


8.
 Water inlet fitting

>>C<<
 9.
 Thermostat


10.
 Thermostat case


11.
 Thermostat case gasket


12.
 Fitting


13.
 Fitting gasket


14.
 Water hose


15.
 Water passage

>>B<<
 16.
 Water passage gasket


17.
 Water hose

>>A<<
 18.
 Water pipe

>>A<<
 19.
 O-ring

INSTALLATION SERVICE POINTS

>>A<< O-RING / WATER PIPE INSTALLATION



caution Keep the O-ring free of oil or grease.
Wet the O-ring (with water) to ease assembly.

>>B<< WATER PASSAGE GASKET INSTALLATION

Install water passage gasket so that its side drop comes to the engine inside as shown in the illustration.

>>C<< THERMOSTAT INSTALLATION

Install the thermostat in the thermostat case with its jiggle valve located at the top position.

>>D<< COOLANT TEMPERATURE SENSOR INSTALLATION

When reusing the sensor, apply the specified sealant to the threads.
Specified sealant:
Three bond 1324N, LOCTITE 262 or equivalent
