ENGINE OIL REPLACEMENT <4M4>


caution When the engine oil is replaced, use the M.U.T.-III to initialise the learning value (Refer to GROUP 00 - Precautions Before Service, Initialisation Procedure for Learning Value in DPF System ) <VEHICLES COMPLYING WITH EMISSION REGULATION STEP IV>.
1.Start the engine and allow it to warm up until the temperature of the coolant reaches 80 °C to 90 °C.
2.
warning Use care as oil could be hot.
Remove the engine oil filler cap.
3.Remove the engine oil pan drain plug to drain oil.

4.Install a new engine oil pan drain plug gasket so that it faces in the direction shown in the illustration, and then tighten the engine oil pan drain plug to the specified torque.
Tightening torque: 39 N·m

5.Refill with specified quantity of oil.

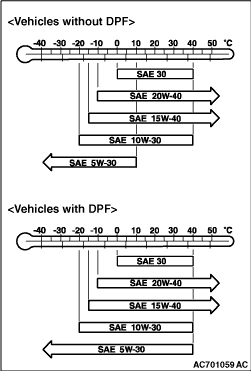

Specified Engine Oil

  • <Vehicles without DPF>

      • ACEA classification: A1/B1, A3/B3, A3/B4 or A5/B5
      API classification: CD or higher

  • <Vehicles with DPF>

      • ACEA classification: C1, C2 or C3
      JASO classification: DL-1
Total quantity (Includes volume inside oil filter and oil cooler): 9.8 L
6.Install the engine oil filler cap.
7.Check oil level.
