Code No. P0133: Right Bank Oxygen Sensor (Front) Circuit Slow Response








OPERATION

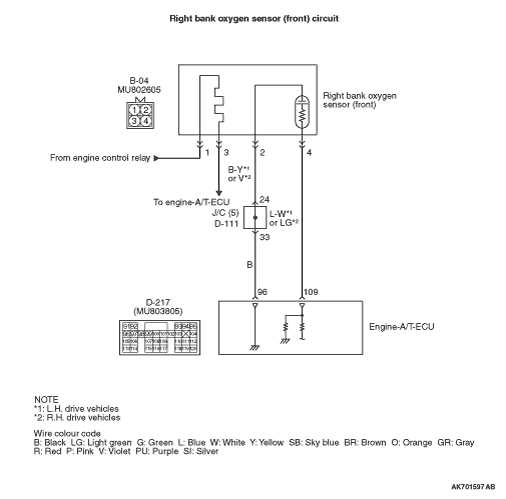

  • The sensor signal is inputted to the engine-A/T-ECU (terminal No. 109) from the right bank oxygen sensor (front) output terminal (terminal No. 4).
  • The right bank oxygen sensor (front) (terminal No. 2) is earthed with engine-A/T-ECU (terminal No. 96).

FUNCTION



  • The right bank oxygen sensor (front) converts the concentration of oxygen in the exhaust emission into a voltage and inputs the signal to the engine-A/T-ECU.
  • When the air-fuel ratio is richer than the theoretical air-fuel ratio, the right bank oxygen sensor (front) outputs a voltage of about 1 V. When it is leaner than the theoretical air-fuel ratio, it outputs a voltage of about 0 V.
  • In response to the signal, the engine-A/T-ECU controls the fuel injection amount so that the air-fuel ratio can be equivalent to the theoretical air-fuel ratio.

TROUBLE JUDGMENT


Check Conditions
  • The engine coolant temperature is more than approximately 50°C.
  • The engine speed is 1,350 - 3,000 r/min.
  • Volumetric efficiency is 25 - 70 %.
  • During the air - fuel ratio feedback control.
  • The accelerator pedal is open.
  • Short-term fuel trim is between -30 and +25 %.
  • More than 3 seconds have elapsed after the above mentioned conditions have been met.
Judgment Criterion
  • Detecting that the right bank oxygen sensor (front) rich/lean transitions are 11 times or less for 12 seconds is carried out 7 times.

PROBABLE CAUSES



  • Failed right bank oxygen sensor (front)
  • Open/short circuit in right bank oxygen sensor (front) circuit or loose connector contact
  • Failed engine-A/T-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

  • Refer to Data List Reference Table .

  1. Item AC: Right bank oxygen sensor (front)

Q. Is the check result normal?
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
Go to Step 2 .

STEP 2. Check right bank oxygen sensor (front) itself.



  • Check right bank oxygen sensor (front) itself (Refer to ).

Q. Is the check result normal?
Go to Step 3 .
Replace the right bank oxygen sensor (front).

STEP 3. Connector check: B-04 right bank oxygen sensor (front) connector and D-217 engine-A/T-ECU connector

Q. Are the check results normal?
Go to Step 4 .
Repair or replace the connector.

STEP 4. M.U.T.-III data list

  • Refer to Data List Reference Table .

  1. Item AC: Right bank oxygen sensor (front)

Q. Is the check result normal?
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
Replace the engine-A/T-ECU.
