REMOVAL AND INSTALLATION


caution
  • *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the earth in an unladen condition.
  • When the suspension is adjusted or replaced, the calibration of steering wheel sensor must be performed (Refer to GROUP 35C- On-vehicle Service- Steering Wheel Sensor Intialisation ).
Pre-removal Operation
  • Front Height Sensor Removal (Refer to GROUP 54A - Height Sensor Removal and Installation ). <Vehicles with Headlamp Automatic Levelling System>

 Post-installation Operation
  • Check the Dust Cover for Cracks or Damage by pushing it with your finger.
  • Wheel Alignment Check and Adjustment (Refer to ).
  • Front Height Sensor Installation (Refer to GROUP 54A - Height Sensor Removal and Installation ). <Vehicles with Headlamp Automatic Levelling System>

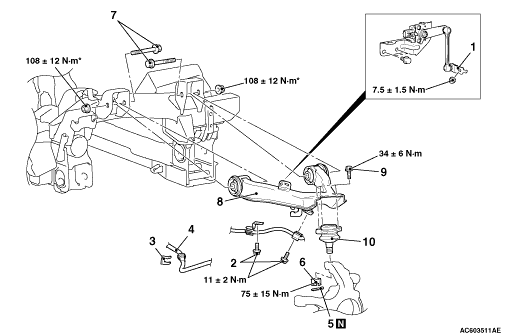

Removal steps


1.
 Front height sensor and upper arm connection nut <Vehicles with headlamp automatic levelling system>


2.
 Front wheel speed sensor clamp mounting bolt


3.
 Clip


4.
 Brake hose


5.
 Split pin
<<A>>
6.
 Upper arm ball joint and knuckle connection nut


7.
 Upper arm mounting bolt


8.
 Upper arm assembly


9.
 Upper arm and upper arm ball joint connection bolt
<<A>>
10.
 Upper arm ball joint assembly

REMOVAL SERVICE POINT

<<A>> UPPER ARM BALL JOINT ASSEMBLY REMOVAL
caution
  • Do not remove the nut from ball joint. Loosen it and use the special tool to avoid possible damage to ball joint threads.

  • Hang the special tool with a cord to prevent it from falling.

1.Install special tool ball joint remover (MB991897 or MB992011) as shown in the figure.

2.Turn the bolt and knob as necessary to make the jaws of special tool parallel, tighten the bolt by hand and confirm that the jaws are still parallel.
note When adjusting the jaws in parallel, make sure the knob is in the position shown in the figure.
3.Tighten the bolt with a wrench to disconnect the ball joint.
