REMOVAL AND INSTALLATION


Pre-removal OperationFloor Console Removal (Refer to GROUP 52A, Floor Console Assembly ).
 Post-installation Operation
  • Parking Brake Lever Stroke Adjustment (Refer to ).
  • Floor Console Installation (Refer to GROUP 52A, Floor Console Assembly ).

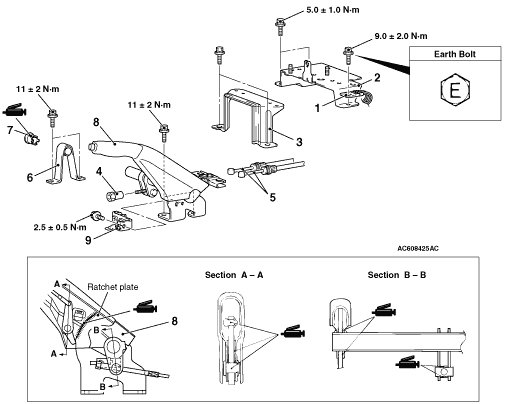

Removal steps


1.
 Earth connection


2.
 G sensor bracket


3.
 Floor console bracket


4.
 Adjusting nut


5.
 Parking brake rear cable connection


6.
 Parking brake stay


7.
 Bushing


8.
 Parking brake lever assembly


9.
 Parking brake switch
