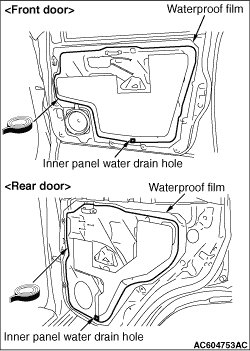

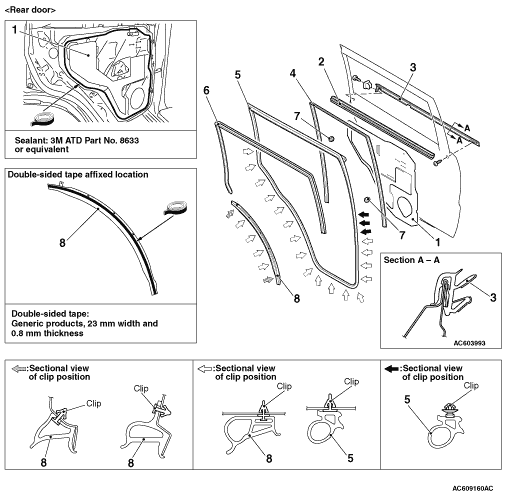

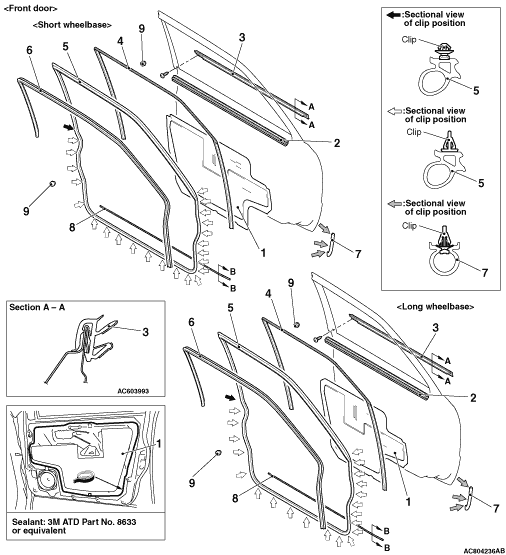

Waterproof film and removal steps
|
|
|
·
|
Door inside handle (Refer to  .)
|
|
|
·
|
Door grip upper retainer (Refer to GROUP 52A - Door Trim .)
|
|
|
·
|
Door trim grip bracket (Refer to GROUP 52A - Door Trim .)
|
|
>>B<<
|
1.
|
Waterproof film
|
|
|
|
Door belt line weatherstrip inner removal steps
|
|
|
·
|
Door trim assembly (Refer to GROUP 52A - Door Trim .)
|
|
|
2.
|
Door belt line weatherstrip inner
|
|
|
|
Door belt line moulding removal steps
|
|
|
·
|
Door trim assembly (Refer to GROUP 52A - Door Trim .)
|
|
|
·
|
Door mirror assembly (Refer to GROUP 51 - Outside Mirror .)
|
|
|
3.
|
Door belt line moulding
|
|
|
|
Door window glass runchannel removal steps
|
|
|
·
|
Pull handle bracket (Refer to GROUP 52A - Door Trim .)
|
|
>>B<<
|
1.
|
Waterproof film
|
|
|
4.
|
Door window glass runchannel
|
|
|
|
Door opening weatherstrip outer removal steps
|
|
|
·
|
Door check connecting bolt (Refer to .)
|
<<A>>
|
|
5.
|
Door opening weatherstrip outer
|
|
|
|

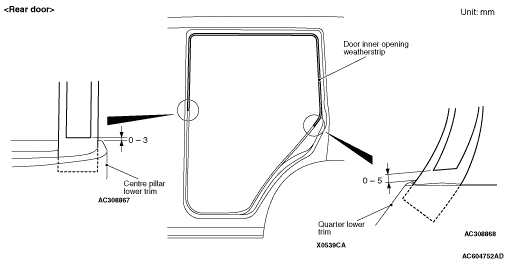

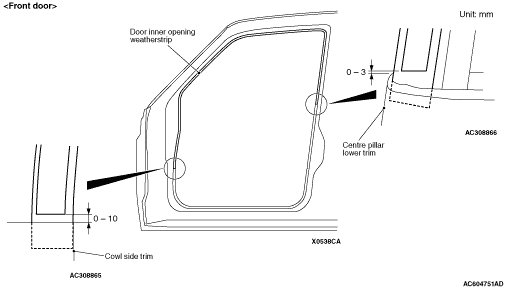

Door opening weatherstrip inner removal steps
|
|
|
·
|
Cowl side trim, scuff plate and Lower quarter trim <short wheelbase> (Refer
to GROUP 52A - Interior Trim .)
|
|
|
·
|
Cowl side trim, scuff plate and lower centre pillar trim <long wheelbase> (Refer
to GROUP 52A - Interior Trim .)
|
|
>>A<<
|
6.
|
Door opening weatherstrip inner
|
|
|
|
Door opening weatherstrip front removal step
|
|
|
7.
|
Door opening weatherstrip front <Optional for diesel-powered vehicles>
|
|
|
|

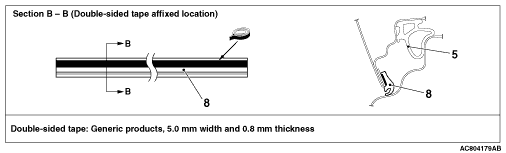

Door opening weatherstrip lower removal step
|
|
|
8.
|
Door opening weatherstrip outer lower <Optional for diesel-powered vehicles>
|
|
|
|
Bumper removal step
|
|
|
9.
|
Bumper
|
