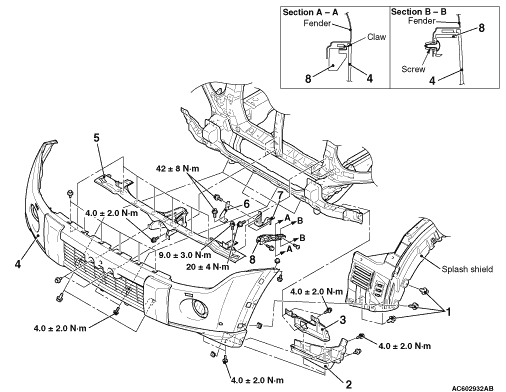

REMOVAL AND INSTALLATION

		Removal steps
	·	Radiator grille (Refer to )
	·	Skid plate (Refer to )
	·	Headlamp washer draining (Refer to )
<<A>>	·	Front overfender front part
	1.	Splash shield mounting clips and screws
	2.	Front wheelhouse splash shield
	3.	Front bumper bracket
	·	Fog lamp connector connection <vehicles with fog lamp>
	·	Headlamp washer hose connection <vehicles with headlamp washer>
<<A>>	4.	Front bumper assembly
	5.	Front bumper reinforcement
	6.	Front bumper side support
	7.	Front bumper stay bracket
	8.	Front bumper support bracket

REMOVAL SERVICE POINT

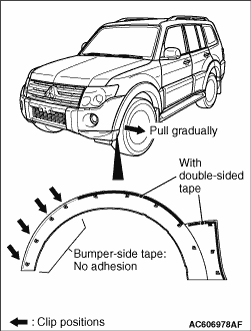

<<A>> FRONT OVERFENDER FRONT PART RELEASE/FRONT BUMPER ASSEMBLY REMOVAL

caution

To prevent the overfender from damage, pull it gradually and do not over-pull it.

Before removing the front bumper assembly, release the front part of the overfender by pulling and unclipping it outwards. This makes the bumper removal possible without removing the entire overfender.
