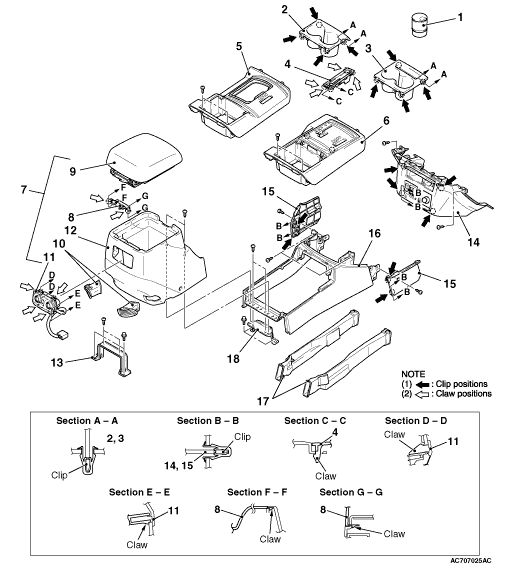

Removal steps
|
|
|
1.
|
Ashtray
|
|
|
2.
|
Cup holder <M/T>
|
|
|
3.
|
Cup holder <A/T>
|
|
|
4.
|
Parking brake cover (A/T)
|
|
|
·
|
Shift knob and transfer shift knob (Refer to GROUP 22A, transmission control <M/T>  or 23A, transmission control <A/T> .)
|
|
|
5.
|
Shift indicator panel assembly <M/T>
|
|
|
6.
|
Shift indicator panel assembly <A/T>
|
|
|
7.
|
Rear console assembly
|
|
|
8.
|
Hinge cover
|
|
|
9.
|
Console lid assembly
|
|
|
10.
|
Foot grille
|
|
|
11.
|
Rear A/C switch
|
|
|
12.
|
Rear floor console
|
|
|
13.
|
Rear console bracket
|
|
|
14.
|
Front panel assembly
|
|
|
15.
|
Side panel
|
|
|
16.
|
Front floor condole
|
|
|
17.
|
Rear heater duct
|
|
|
18.
|
Front console bracket
|
|
