DISASSEMBLY AND REASSEMBLY

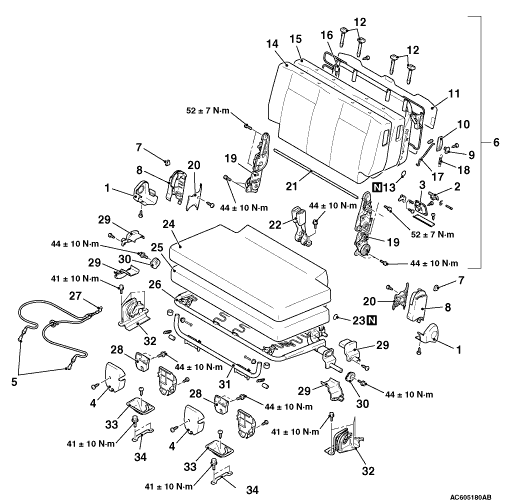

Disassembly steps


1.
 Outer reclining adjuster cover


2.
 Catch release knob


3.
 Catch release knob garnish


4.
 Latch cover


5.
 Catch cable connection


6.
 Third seat back assembly


7.
 Reclining knob


8.
 Reclining adjuster cover


9.
 Folding lever knob


10.
 Folding knob garnish


11.
 Third seat back board
<<A>>
12.
 Headrestraint guide


13.
 Hog ring


14.
 Third seat back cover


15.
 Third seat back pad


16.
 Third seat back frame


17.
 Rod


18.
 Spring


19.
 Reclining adjuster


20.
 Inner reclining adjuster cover


21.
 Shaft


22.
 Inner seat belt


23.
 Hog ring


24.
 Third seat cushion cover


25.
 Third seat cushion pad


26.
 Third seat cushion frame


27.
 Catch cable


28.
 Third seat latch


29.
 Arm cover


30.
 Cam


31.
 Third seat leg frame assembly


32.
 Catch assembly


33.
 Striker cover


34.
 Striker

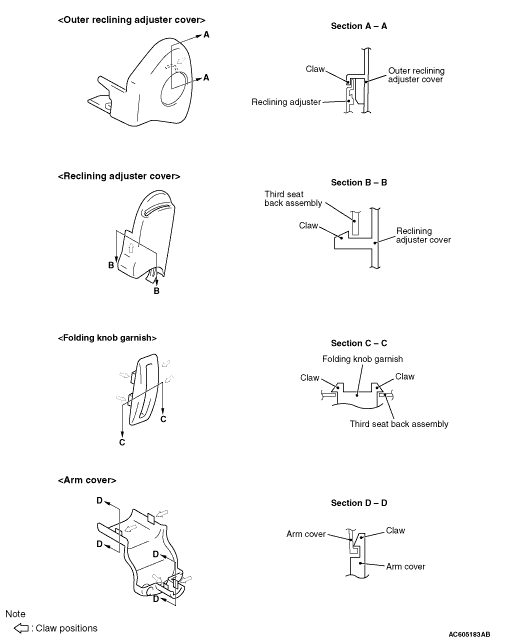

CLAW POSITIONS




REMOVAL SERVICE POINT

<<A>> HEAD RESTRAINT GUIDE REMOVAL

Peel of the front seatback cover and pad to access the headrestraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
