HEIGHT SENSOR REMOVAL AND INSTALLATION

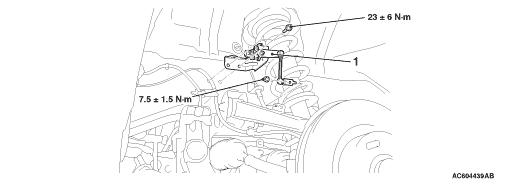

Front height sensor


Post-installation operationCheck the beam direction of the headlamp (Refer to Headlamp Aiming ).




Front height sensor removal


1.
 Front height sensor

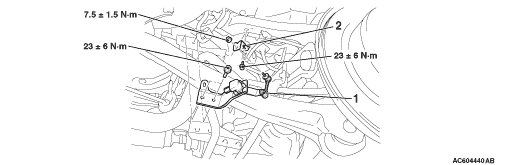

Rear height sensor


Post-installation operationCheck the beam direction of the headlamp (Refer to Headlamp Aiming ).




Rear height sensor removal steps


1.
 Rear height sensor


2.
 Rear height sensor bracket
