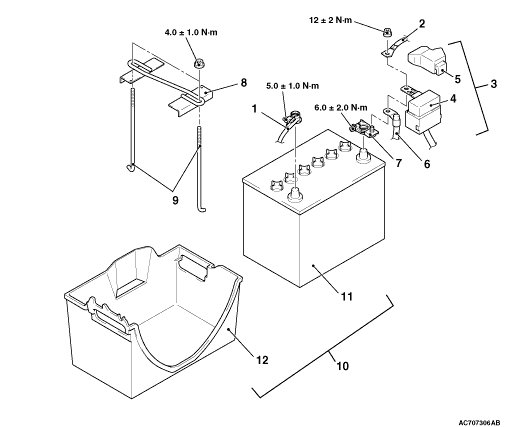

Removal steps
|
|
|
1.
|
Battery (-) terminal connection harness
|
|
|
2.
|
Battery (+) terminal connection harness <Vehicles with sub battery>
|
|
|
3.
|
Fusible link box assembly
|
|
|
4.
|
Fusible link box
|
|
|
5.
|
Battery terminal cap
|
|
|
6.
|
Battery (+) terminal connection harness
|
|
|
7.
|
Battery (+) terminal
|
|
|
8.
|
Battery holder
|
|
|
9.
|
Battery L-bolt
|
|
|
10.
|
Battery and battery box
|
|
|
11.
|
Battery
|
|
|
12.
|
Battery box
|
|
