SYSTEM OPERATION

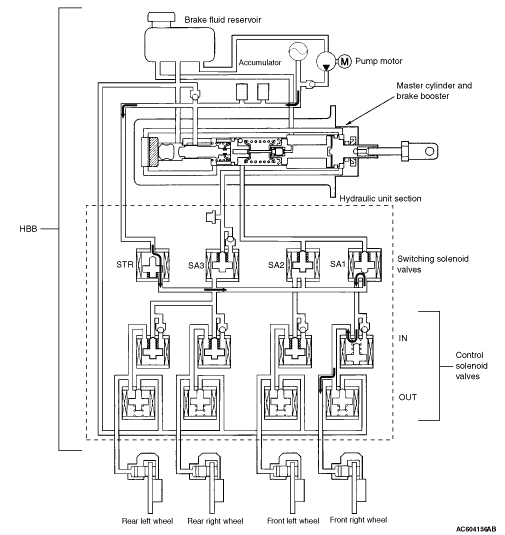

ACTIVE STABILITY CONTROL SYSTEM ON (EXAMPLE: TRUNING TO LEFT, OVERSTEER SUPPRESSED)
SWITCHING SOLENOID VALVES
| Name |
Energization |
| SA1 |
Energized |
| SA2 |
Energized |
| SA3 |
Energized |
| STR |
Energized |
CONTROL SOLENOID VALVES
| Name |
Energization |
Open/Closed |
|
| Front right solenoid valve |
IN |
Deenergized |
Open |
| OUT |
Deenergized |
Closed |
|
| Front left solenoid valve |
IN |
Energized |
Closed |
| OUT |
Deenergized |
Closed |
|
| Rear right solenoid valve |
IN |
Energized |
Closed |
| OUT |
Deenergized |
Closed |
|
| Rear left solenoid valve |
IN |
Energized |
Closed |
| OUT |
Deenergized |
Closed |
|

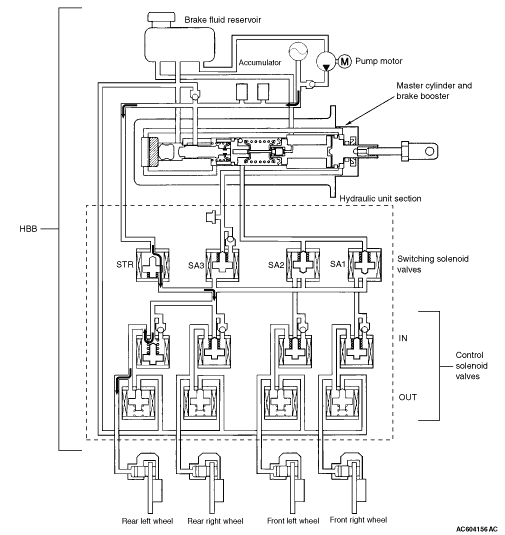

ACTIVE STABILITY CONTROL SYSTEM ON (EXAMPLE: TURNING TO LEFT, UNDERSTEER SUPPRESSED)
SWITCHING SOLENOID VALVES
| Name |
Energization |
| SA1 |
Energized |
| SA2 |
Energized |
| SA3 |
Energized |
| STR |
Energized |
CONTROL SOLENOID VALVES
| Name |
Energization |
Open/Closed |
|
| Front right solenoid valve |
IN |
Energized |
Closed |
| OUT |
Deenergized |
Closed |
|
| Front left solenoid valve |
IN |
Energized |
Closed |
| OUT |
Deenergized |
Closed |
|
| Rear right solenoid valve |
IN |
Energized |
Closed |
| OUT |
Deenergized |
Closed |
|
| Rear left solenoid valve |
IN |
Deenergized |
Open |
| OUT |
Deenergized |
Closed |
|
