GENERAL INFORMATION








  • A frontal collision is less than the threshold.
  • The collision is from the rear
  • The collision is from the side
  • The vehicle rolls over or is in a similar position.


  • A side collision is less than the threshold.
  • The collision is from the front
  • The collision is from the rear
  • The vehicle rolls over or is in a similar position.

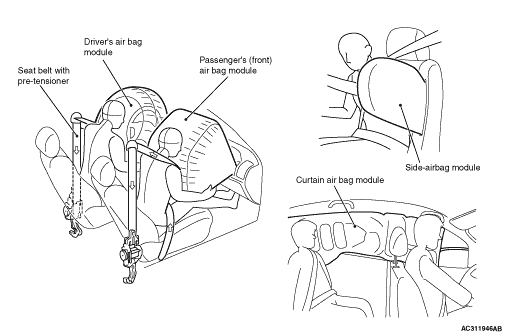

SRS FRONT AIR BAG



SRS SIDE-AIRBAG



SRS CURTAIN AIR BAG



SEAT BELT WITH PRE-TENSIONER





SYSTEM COMPONENT PARTS




  • SRS-ECU, installed at the depths of the centre console, monitors the system.
  • The front impact sensor is assembled in the headlamp support panel to monitor collision upon frontal impact.
  • The side impact sensor is assembled in the centre pillar and quarter panel lower to monitor collision upon side impact.
  • The warning lamp on the instrument panel indicates the operational status of the SRS.
  • The clock spring is installed in the steering column.
  • The passenger’s air bag cut off switch is located above inside the glove box.
  • The passenger’s air bag off indicator lamp is located above the centre air outlet in the instrument panel.
  • The seat belt pre-tensioner is incorporated in the seat belt retractor.



  • Power supply backup function that deploys or operates the air bag module and seat belt pre-tensioner within specific period, in case of power failure upon impact.
  • Diagnostic test mode to improve safety and reliability.

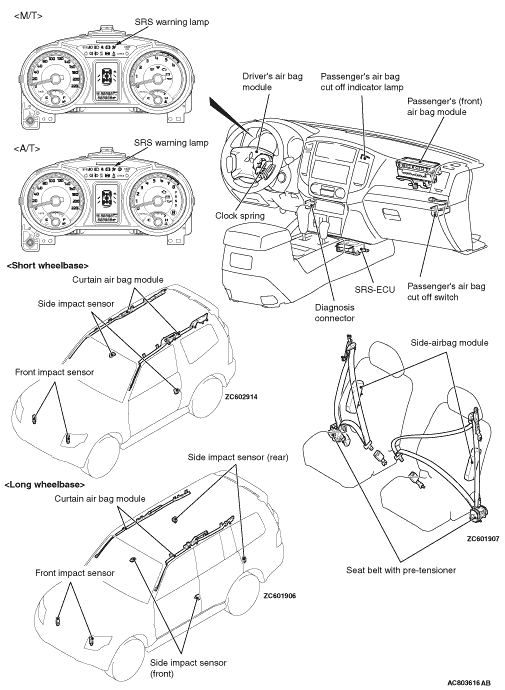

CONSTRUCTION DIAGRAM

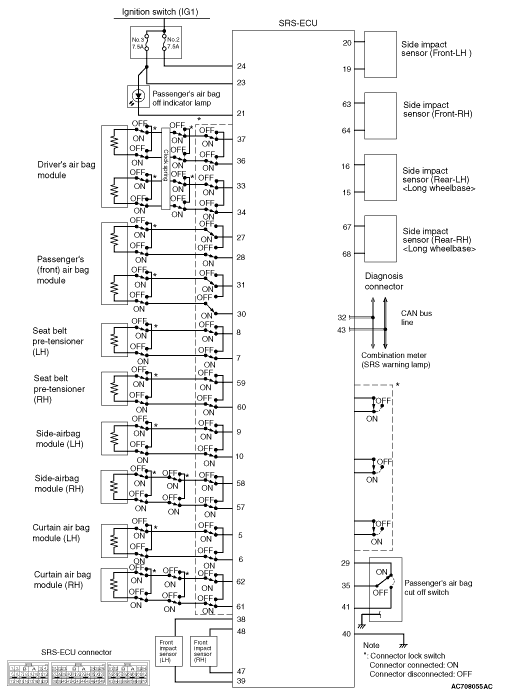

SRS SYSTEM CIRCUIT DIAGRAM

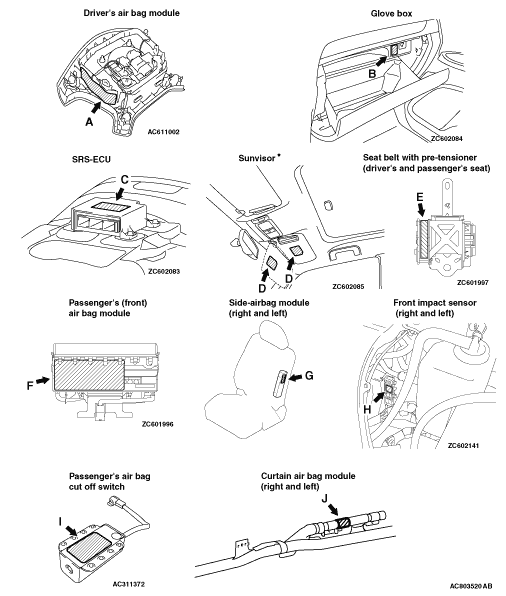

CAUTION LABELS





note *: indicates LHD vehicles. For RHD vehicles, the specified application position of label is reversed left to right.
Label content
A
 DANGER: FLAMMABLE EXPLOSIVE
DO NOT: DISASSEMBLE; HEAT; INCINERATE; APPLY ELECTRICITY; OR STORE AT HIGH TEMPERATURE (93°C OR HIGHER). REFER TO WORKSHOP MANUAL FOR DETAILS.
B
C
 CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECT REFER TO SERVICE MANUAL.
D

 WARNING

  • DEATH OR SERIOUS INJURY can occur.
  • DO NOT place rear-facing child seat on this seat with airbag.
E
 DANGER
SEAT BELT PRETENSIONER
CAUTION
THIS ASSEMBLY CONTAINS AN EXPLOSIVE INITIATOR
FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY

  • DO NOT IMPACT, DISMANTLE OR INSTALL IT INTO ANOTHER VEHICLE.
  • SERVICE OR DISPOSE OF IT AS DIRECTED IN THE REPAIR MANUAL.
F, J
 DANGER
FLAMMABLE EXPLOSIVE
SRS AIR BAG MODULE

  • DO not disassemble or shock.
  • Do not heat or incinerate.
  • Do not contact with electricity or tester probes.
  • Do not test or diagnose.
  • Do not store in more than 200° F (93°C).
  • Store the air bag cover is top.
  • For information on handling, replacement, and disposal methods, refer to the service manual.
G
 WARNING FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

  • DO NOT REPAIR, DISASSEMBLE OR TAMPER.
  • AVOID CONTACT WITH FLAME OR ELECTRICITY.
  • DO NO DIAGNOSIS/USE NO TEST EQPT OR PROBES.
  • STORE BELOW 200°F (93°C).
  • BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL FOR IMPORTANT FURTHER DATA.
H
 CAUTION:
DO NOT DISASSEMBLE OR DROP.
I
 CAUTION

  • Do Not Disassemble or Alter
  • See Owner’s Manual
