GENERAL INFORMATION

6 speakers

• Front tweeter: 3.5 cm balanced dome tweeter

• Front door speaker: 16 cm paper cone speaker

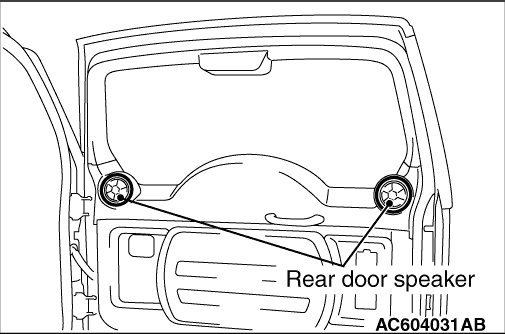

• Rear speaker <short wheelbase> or rear door speaker <long wheelbase>: 16 cm paper cone speaker


8 speakers (6 positions) <Short wheelbase: Mitsubishi power sound system>

• Front tweeter: 3.5 cm hard dome tweeter

• Front door speaker: 16 cm Metalized pp (polypropylene) cone speaker

• Rear speaker: 16 cm Metalized PP (polypropylene) coaxial 2 way speaker


12 speakers <Long wheelbase: ROCKFORD ACOUSTIC DESIGN PREMIUM SOUND SYSTEM>

• Front and rear tweeters: 3.5 cm soft dome tweeter

• Front door and rear door: 16 cm Mid-Bass speaker

• Front speaker: 8 cm Mid-range speaker

• Back door speaker: 8 cm Mid-range speaker

• Subwoofer: 25-cm dual voice coil subwoofer


Specifications

TWEETER

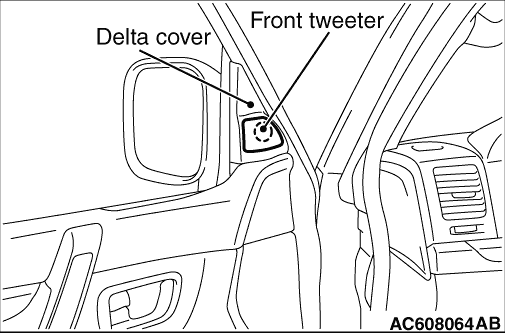

• For vehicles with 6 speakers and 8 speakers (6 position), tweeters are installed in the delta covers.
  Compared to the balanced dome tweeter employed for the vehicles with 6 speakers, the hard dome tweeter for the vehicles with 8 speakers can play clearer and speedier treble.

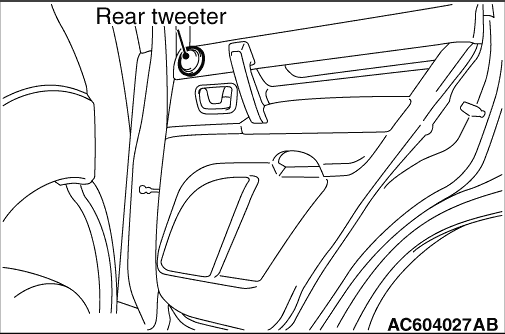

• For vehicles with 12 speakers, tweeters are installed in the delta covers and the rear door trim. <ROCKFORD ACOUSTIC DESIGN PREMIUM SOUND SYSTEM>
  Compared to the balanced dome tweeter employed for the vehicles with 6 speakers, the soft dome tweeter for the vehicles with 12 speakers can play clearer and more ear-pleasing treble.


SPEAKER

• Compared to the paper cone speaker employed for the vehicles with 6 speakers, the metalized PP (polypropylene) cone speaker is adopted for the front door of vehicles with 8 speakers, enabling the playback of crisper bass sound. In addition, the metalized PP (polypropylene) coaxial 2 way speaker is adopted for the rear speaker, and the speakers for treble and low bass are arranged along the same axle, achieving a well-balanced wide range sound.


• For the vehicles with 12 speakers, the Mid-Bass speaker is employed for the front door and rear door speakers. For the Mid-Bass speaker, PP (polypropylene) paper cone is adopted. Furthermore, the large magnet is adopted, enabling the playback of crisper bass sound and also the life-like mid range sound.


A 25-cm dual voice coil subwoofer is installed on the lower quarter trim (L.H.) in the luggage compartment, thus enhancing low-tone sound.
