No.
|

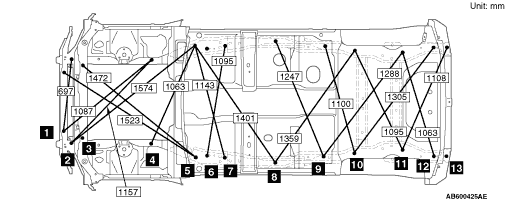

Standard measurement point
|
Hole shape
|
Size mm
|
1
|
Centre of under skid plate mounting hole
|
Round
|
11
|
2
|
Centre of front sidemember outer positioning hole
|
Round
|
25
|
3
|
Centre of front end extension rear positioning hole
|
Round
|
20
|
4
|
Centre of front frame mounting hole
|
Round
|
20
|
5
|
Centre of front sidemember outer positioning hole
|
Round
|
25
|
6
|
Centre of transmission mount centremember mounting hole
|
Round
|
13
|
7
|
Centre of transmission mount centremember mounting hole
|
Round
|
13
|
8
|
Centre of rear sidemember positioning hole
|
Round
|
12
|
9
|
Centre of trailing arm bracket positioning hole
|
Round
|
15
|
10
|
Centre of rear frame extension positioning hole
|
Round
|
21
|
11
|
Centre of rear sidemember positioning hole
|
Round
|
25
|
12
|
Centre of hook bracket mounting hole (front)
|
Round
|
14
|
13
|
Centre of hook bracket mounting hole (rear)
|
Round
|
16
|
