1.The front sidemember outer and front sidemember inner interfere with the front upper frame, and thus remove the front upper frame.
|
|

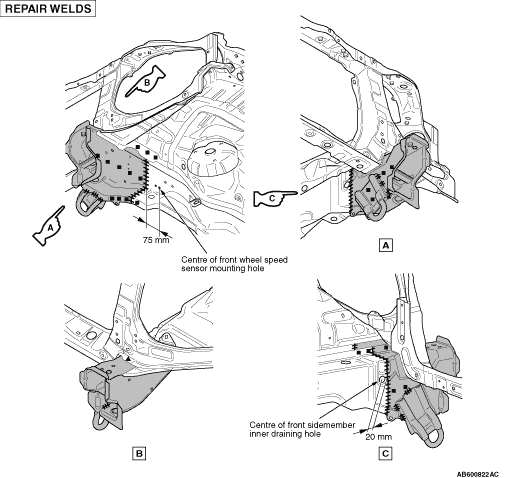

2.To remove the front sidemember reinforcement front, cut and remove the front sidemember outer as shown in the figure.
|
|
3.To remove the welding point of front sidemember inner, cut and remove the front sidemember outer as shown in the figure.
|
|
1.When assembling the new front sidemember inner part, apply in advance adhesives to the areas shown in the figure of the instructions.
Adhesive: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent
2.Install the new front sidemember reinforcement front, and install the new front sidemember outer.
|
for the welding point with front end crossmember.
