1.When removing the rear floor sidemember extension, the rear sidemember reinforcement and the rear floor sidemember reinforcement B interfere with it, and thus remove the rear sidemember reinforcement and rear floor sidemember reinforcement B in advance.
|
|

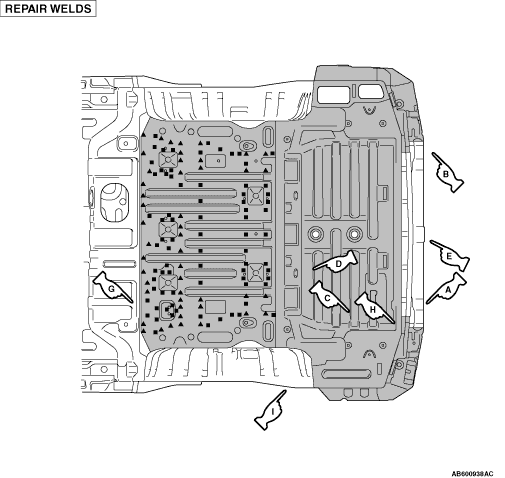

1.When assembling the new quarter inner extension lower parts, apply in advance body sealant to the areas shown in the figure of the instructions.
|
|
2.When assembling the new rear floor pan parts, apply in advance adhesives to the areas shown in the figure of the instructions.
Adhesive: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent
|
|
3.When assembling the new rear floor pan third seat parts, apply in advance adhesives to the areas shown in the figure of the instructions.
Adhesive: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent
|
