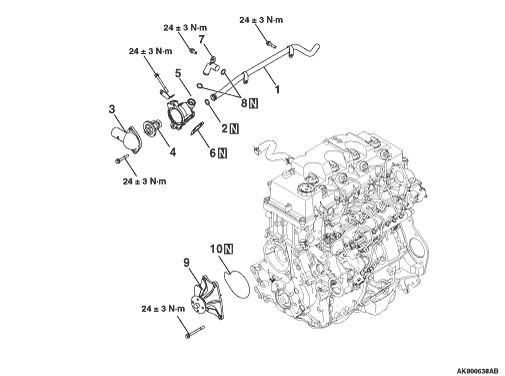

REMOVAL AND INSTALLATION



Removal steps


1.
 Heater return pipe


2.
 O-ring


3.
 Water inlet fitting

>>A<<
 4.
 Thermostat


5.
 Thermostat case


6.
 Gasket


7.
 By-pass pipe


8.
 O-ring


9.
 Water pump


10.
 O-ring

INSTALLATION SERVICE POINTS

>>A<< THERMOSTAT INSTALLATION

Install the thermostat respecting the shown angle and being careful not to tear off or damage its rubber ring.
caution Never adhere oils and greases on the rubber ring of the thermostat.
