Code No. P2101: Throttle Valve Control Servo Magneto Malfunction










OPERATION



  • Controls the current that is applied from the engine-ECU <M/T> or engine-A/T-ECU <A/T> (terminals No. 133, No. 141) to the electronic-controlled throttle valve (terminals No. 5, No. 6).

FUNCTION



  • Engine-ECU <M/T> or engine-A/T-ECU <A/T> check whether the throttle valve control servo magneto failed.

TROUBLE JUDGMENT


Check Condition
  • Battery positive voltage is more than 8.3 V.
Judgement Criterion
  • The coil current of the throttle valve control servo is more than 8 A.

PROBABLE CAUSES



  • Failed throttle valve control servo
  • Short circuit in throttle valve control servo circuit or loose connector contact
  • Failed engine-ECU <M/T> or engine-A/T-ECU <A/T>

DIAGNOSIS PROCEDURE

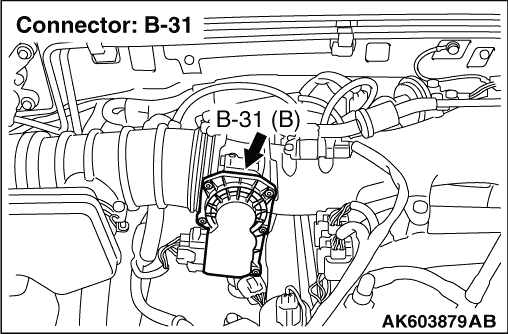

STEP 1. Connector check: B-31 electronic-controlled throttle valve connector


Q. Is the check result normal?

Go to Step 2 .
Repair or replace the connector.

STEP 2. Perform resistance measurement at B-31 electronic-controlled throttle valve connector.



  • Disconnect connector, and measure at electronic-controlled throttle valve side.
  • Resistance between terminal No. 5 and No. 6.
OK: 0.3 - 100 kΩ (at 20 °C)

Q. Is the check result normal?

Go to Step 3 .
Replace the throttle body assembly.

STEP 3. Connector check: D-247 engine-ECU <M/T> connector or D-218 engine-A/T-ECU <A/T> connector


Q. Is the check result normal?

Go to Step 4 .
Repair or replace the connector.

STEP 4. Check harness between B-31 (terminal No. 6) electronic-controlled throttle valve connector and D-247 (terminal No. 133) engine-ECU <M/T> connector or D-218 (terminal No. 133) engine-A/T-ECU <A/T> connector.



  • Check output line for short circuit and damage.

Q. Is the check result normal?

Go to Step 5 .
Repair the damaged harness wire.

STEP 5. Check harness between B-31 (terminal No. 5) electronic-controlled throttle valve connector and D-247 (terminal No. 141) engine-ECU <M/T> connector or D-218 (terminal No. 141) engine-A/T-ECU <A/T> connector.



  • Check output line for short circuit and damage.

Q. Is the check result normal?

Go to Step 6 .
Repair the damaged harness wire.

STEP 6. Check the trouble symptoms.


Q. Is the diagnosis code set?

Replace the engine-ECU <M/T> or engine-A/T-ECU <A/T>.
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
