Code No. P0132: Right Bank Oxygen Sensor (Front) Circuit High Voltage








OPERATION

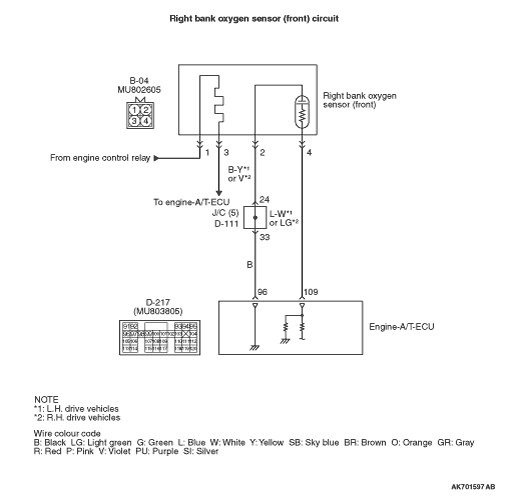

  • The sensor signal is inputted to the engine-A/T-ECU (terminal No. 109) from the right bank oxygen sensor (front) output terminal (terminal No. 4).
  • The right bank oxygen sensor (front) (terminal No. 2) is earthed with engine-A/T-ECU (terminal No. 96).

FUNCTION



  • The right bank oxygen sensor (front) converts the concentration of oxygen in the exhaust emission into a voltage and inputs the signal to the engine-A/T-ECU.
  • When the air-fuel ratio is richer than the theoretical air-fuel ratio, the right bank oxygen sensor (front) outputs a voltage of about 1 V. When it is leaner than the theoretical air-fuel ratio, it outputs a voltage of about 0 V.
  • In response to the signal, the engine-A/T-ECU controls the fuel injection amount so that the air-fuel ratio can be equivalent to the theoretical air-fuel ratio.

TROUBLE JUDGMENT


Check Condition
  • 2 seconds later from when the engine starts.
Judgment Criterion
  • Right bank oxygen sensor (front) output voltage is more than 1.2 V for 2 seconds.

PROBABLE CAUSES



  • Short circuit in right bank oxygen sensor (front) circuit or loose connector contact
  • Failed engine-A/T-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

  • Refer to Data List Reference Table .

  1. Item AC: Right bank oxygen sensor (front)

Q. Is the check result normal?
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
Go to Step 2 .

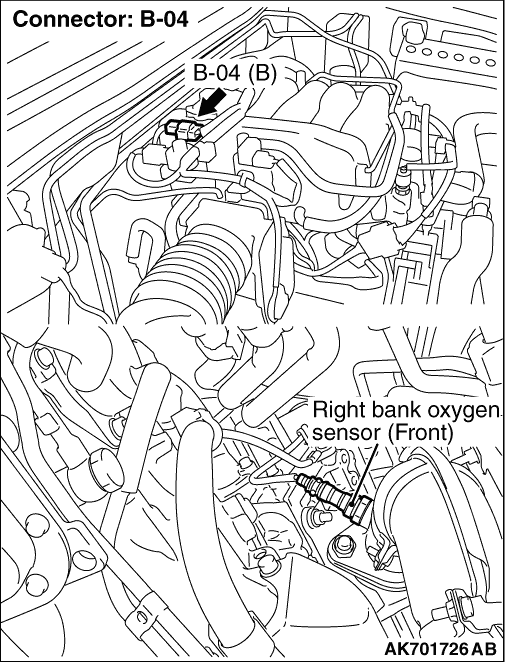

STEP 2. Connector check: B-04 right bank oxygen sensor (front) connector

Q. Is the check result normal?
Go to Step 3 .
Repair or replace the connector.

STEP 3. Connector check: D-217 engine-A/T-ECU connector

Q. Is the check result normal?
Go to Step 4 .
Repair or replace the connector.

STEP 4. Check harness between B-04 (terminal No. 4) right bank oxygen sensor (front) connector and D-217 (terminal No. 109) engine-A/T-ECU connector.

  • Check output line for short circuit.

Q. Is the check result normal?
Go to Step 5 .
Repair the damaged harness wire.

STEP 5. Check harness between B-04 (terminal No. 2) right bank oxygen sensor (front) connector and D-217 (terminal No. 96) engine-A/T-ECU connector.
note Before checking harness, check intermediate connector D-111, and repair if necessary.

  • Check earthing line for short circuit.

Q. Is the check result normal?
Go to Step 6 .
Repair the damaged harness wire.

STEP 6. M.U.T.-III data list

  • Refer to Data List Reference Table .

  1. Item AC: Right bank oxygen sensor (front)

Q. Is the check result normal?
Intermittent malfunction (Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions ).
Replace the engine-A/T-ECU.
