REMOVAL AND INSTALLATION <6G7>

---

<Short wheelbase>

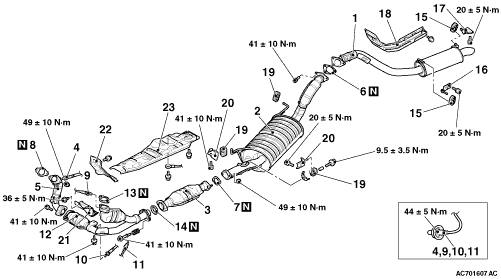

Exhaust main muffler and rear floor heat protector removal steps 1. Exhaust main muffler 6. Exhaust pipe gasket 15. Exhaust muffler hanger 16. Hanger bracket 17. Hanger bracket 18. Rear floor heat protector Centre exhaust pipe removal steps 2. Centre exhaust pipe 6. Exhaust pipe gasket 7. Exhaust pipe gasket 19. Exhaust muffler hanger 20. Hanger bracket Rear catalytic converter removal steps 3. Rear catalytic converter 7. Exhaust pipe gasket 14. Seal ring Front exhaust pipe, front catalytic converter and dash panel heat protector removal steps · Under skid plate and engine room under cover (front) (Refer to GROUP 51 - Under Cover ) <<A>> >>A<< 4. Right bank oxygen sensor (front) 5. Front exhaust pipe 8. Exhaust pipe gasket <<A>> >>A<< 9. Left bank oxygen sensor (front) <<A>> >>A<< 10. Right bank oxygen sensor (rear) <<A>> >>A<< 11. Left bank oxygen sensor (rear) 12. Front catalytic converter 13. Exhaust pipe gasket 14. Seal ring 21. Exhaust support bracket 22. Dash panel heat protector Front floor heat protector removal steps 3. Rear catalytic converter 7. Exhaust pipe gasket 14. Seal ring · Under skid plate and engine room under cover (front) (Refer to GROUP 51 - Under Cover ) <<A>> >>A<< 4. Right bank oxygen sensor (front) 5. Front exhaust pipe 8. Exhaust pipe gasket <<A>> >>A<< 9. Left bank oxygen sensor (front) <<A>> >>A<< 10. Right bank oxygen sensor (rear) <<A>> >>A<< 11. Left bank oxygen sensor (rear) 12. Front catalytic converter 13. Exhaust pipe gasket 14. Seal ring 21. Exhaust support bracket 22. Dash panel heat protector 23. Front floor heat protector

---

<Long wheelbase>

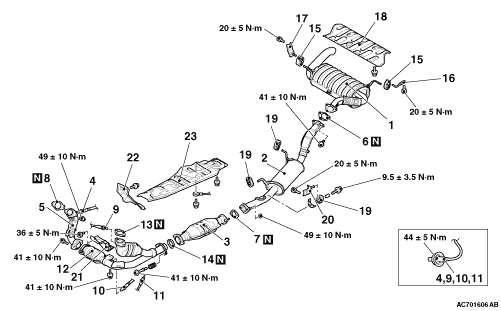

Exhaust tail pipe and rear floor heat protector removal steps 1. Exhaust tail pipe 6. Exhaust pipe gasket 15. Exhaust muffler hanger 16. Hanger bracket 17. Hanger bracket 18. Rear floor heat protector Exhaust main muffler removal steps 2. Exhaust main muffler 6. Exhaust pipe gasket 7. Exhaust pipe gasket 19. Exhaust muffler hanger 20. Hanger bracket Rear catalytic converter removal steps 3. Rear catalytic converter 7. Exhaust pipe gasket 14. Seal ring Front exhaust pipe, front catalytic converter and dash panel heat protector removal steps · Under skid plate and engine room under cover (front) (Refer to GROUP 51 - Under Cover ) <<A>> >>A<< 4. Right bank oxygen sensor (front) 5. Front exhaust pipe 8. Exhaust pipe gasket <<A>> >>A<< 9. Left bank oxygen sensor (front) <<A>> >>A<< 10. Right bank oxygen sensor (rear) <<A>> >>A<< 11. Left bank oxygen sensor (rear) 12. Front catalytic converter 13. Exhaust pipe gasket 14. Seal ring 21. Exhaust support bracket 22. Dash panel heat protector Front floor heat protector removal steps 3. Rear catalytic converter 7. Exhaust pipe gasket 14. Seal ring · Under skid plate and engine room under cover (front) (Refer to GROUP 51 - Under Cover ) <<A>> >>A<< 4. Right bank oxygen sensor (front) 5. Front exhaust pipe 8. Exhaust pipe gasket <<A>> >>A<< 9. Left bank oxygen sensor (front) <<A>> >>A<< 10. Right bank oxygen sensor (rear) <<A>> >>A<< 11. Left bank oxygen sensor (rear) 12. Front catalytic converter 13. Exhaust pipe gasket 14. Seal ring 21. Exhaust support bracket 22. Dash panel heat protector 23. Front floor heat protector

---

REMOVAL SERVICE POINT

---

<<A>> OXYGEN SENSOR REMOVAL

Remove the connection and clamp of oxygen sensor connector, and then use special tool oxygen sensor wrench (MB991953) to remove the oxygen sensor.

---

INSTALLATION SERVICE POINT

---

>>A<< OXYGEN SENSOR INSTALLATION

1.Tighten the oxygen sensor to the specified torque by using special tool oxygen sensor wrench (MB991953). Tightening torque: 44 ± 5 N·m 2.Connect the oxygen sensor connector and install the connector bracket.
