REMOVAL AND INSTALLATION <4M4>


Pre-removal and Post-installation Operation
  • Front Propeller Shaft Removal and Installation (Refer to GROUP 25 - Propeller Shaft ).

  • A/T Fluid Level Gauge Guide Assembly Removal and Installation <A/T> (Refer to GROUP 23C - Transmission Assembly ).

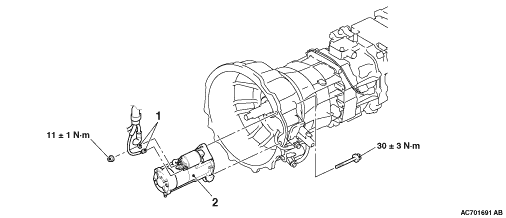

Removal steps


1.
 Starter connector and terminal connection
<<A>>
2.
 Starter assembly

REMOVAL SERVICE POINT

<<A>> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from under the vehicle.
