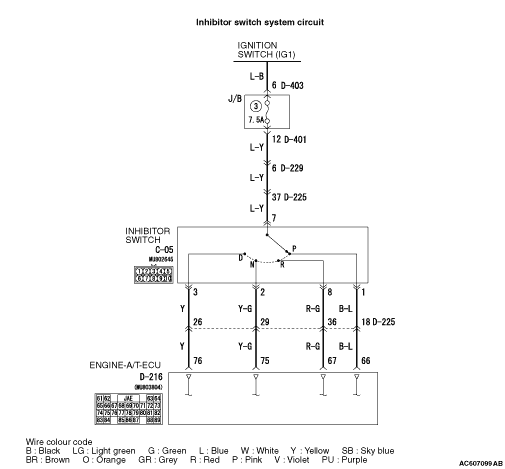

Code No.P1770 (P0705): Inhibitor switch system












OPERATION



DIAGNOSIS CODE SET CONDITIONS



PROBABLE CAUSES
  • Malfunction of the inhibitor switch
  • Damaged harness wires and connectors
  • Malfunction of the engine-A/T-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list
Item 34: Inhibitor switch (Refer to Data List Reference Table ).

Q. Is the check result normal?
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunction ).
NO none of the selector lever positions are displayed on M.U.T.-III : Go to Step 2.
NO only one of the selector lever positions is not displayed on M.U.T.-III : Go to Step 6.

STEP 2. Check the inhibitor switch.
Refer to .

Q. Is the check result normal?
Go to Step 3.
Replace the inhibitor switch.

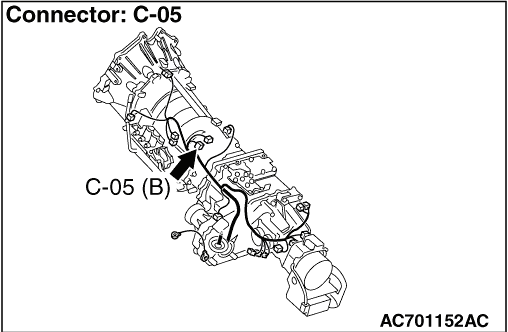

STEP 3. Connector check: C-05 Inhibitor switch connector, D-401 J/B connector, D-225 and D-229 intermediate connector
Check for the contact with terminals.

Q. Is the check result normal?
Go to Step 4.
Repair the defective connector.

STEP 4. Check the harness between inhibitor switch connector C-05 terminal No.7 and J/B connector D-401 terminal No 12.
Check the power supply line for open circuit.

Q. Is the check result normal?
Go to Step 5.
Repair the wiring harness.

STEP 5. M.U.T.-III data list
Item 34: Inhibitor switch (Refer to Data List Reference Table ).

Q. Is the check result normal?
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunction ).
Replace the engine-A/T-ECU.

STEP 6. Check the inhibitor switch.
Refer to .

Q. Is the check result normal?
Go to Step 7.
Replace the inhibitor switch.

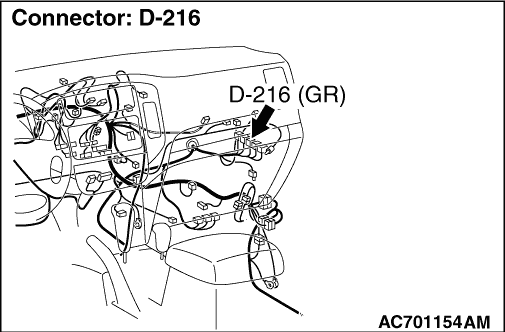

STEP 7. Connector check: C-05 inhibitor switch connector, D-216 engine-A/T-ECU connector, D-225 intermediate connector.
Check for the contact with terminals.

Q. Is the check result normal?
Go to Step 8.
Repair the defective connector.

STEP 8. Check the harness between inhibitor switch connector C-05 terminal No.3, 2, 8, 1 and engine-A/T-ECU connector D-216 terminal No.76, 75, 67, 66.
Check the output line for open circuit.

Q. Is the check result normal?
Go to Step 5.
Repair the wiring harness.
