DISASSEMBLY AND REASSEMBLY

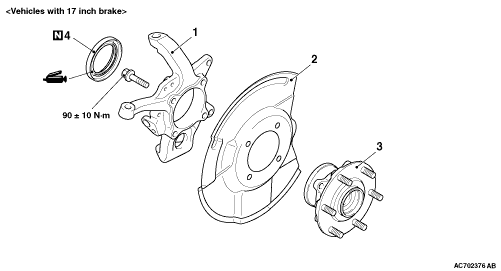

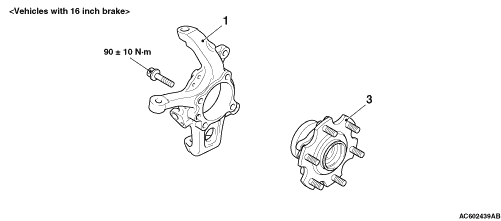

Disassembly steps


1.
 Knuckle


2.
 Dust cover <Vehicles with 17 inch brake>


3.
 Front hub assembly

>>A<<
 4.
 Front inner oil seal <Vehicles with 17 inch brake>

REASSEMBLY SERVICE POINT

>>A<< FRONT INNER OIL SEAL INSTALLATION

Press-fit the new oil seal into the knuckle by using the following special tools.

  • Installer bar (MB990938)
  • Oil seal installer (MB9901380)
