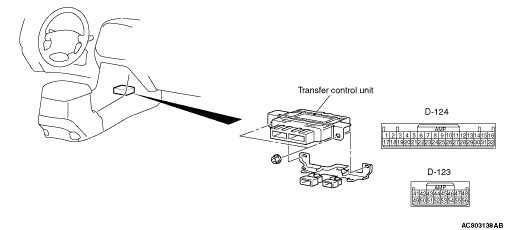

Terminal No.
|
Item
|
Condition
|
Terminal voltage
|
25
|
Ignition switch (IG1)
|
Ignition switch: OFF
|
1 V or less
|
Ignition switch: ON
|
System voltage
|
19
|
Air pump assembly
|
Ignition switch: ON
|
When filling or holding
|
System voltage
|
When releasing
|
1 V or less
|
55
|
Centre differential lock detection switch
|
Ignition switch: ON
|
4WD
|
1 V or less
|
2WD
|
System voltage
|
10, 11, 43
|
Earth
|
-
|
-
|
-
|
50
|
Rear differential lock detection switch
|
Ignition switch: ON
|
Rear differential lock is locked
|
1 V or less
|
Rear differential is free
|
System voltage
|
49
|
Rear differential lock switch (On position)
|
Ignition switch: ON
|
Rear differential lock switch is pushed.
|
1 V or less
|
Rear differential lock switch is not pushed.
|
System voltage
|
42
|
Rear differential lock switch (OFF position)
|
Ignition switch: ON
|
Rear differential lock switch is pushed.
|
1 V or less
|
Rear differential lock switch is not pushed.
|
System voltage
|
6
|
Rear differential lock indicator lamp
|
Ignition switch: ON
|
Rear differential is locked
|
System voltage
|
Rear differential is free
|
1 V or less
|
