REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation

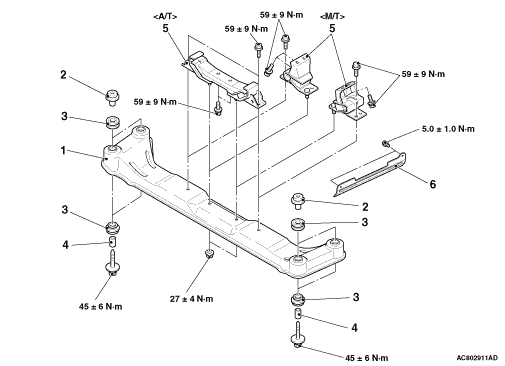

  • Raise the engine and transmission assembly until its weight is not applied to the insulator, and support it securely.




Removal steps

>>A<<
 1.
 Transmission mounting centre member assembly


2.
 Collar <4M4-A/T>


3.
 Transmission mounting bushing


4.
 Collar <6G7, 4M4-M/T>


5.
 Transmission mounting insulator assembly


6.
 Heat protector

INSTALLATION SERVICE POINT

>>A<< TRANSMISSION MOUTING CENTRE MEMBER ASSEMBLY INSTALLATION

The installation point of the transmission mounting centre member assembly differs depending on the onboard engine, and thus install the transmission mounting centre member assembly as shown in the figure.
