REMOVAL AND INSTALLATION


caution When the suspension is adjusted or replaced, the calibration of steering wheel sensor must be performed (Refer to GROUP 35C- On-vehicle Service- Steering Wheel Sensor Initialisation ).
Pre-removal Operation
  • Under Cover Removal (Refer to GROUP 51- Under Cover ).

 Post-installation Operation
  • Check the Dust Cover for Cracks or Damage by Pushing it with Your Finger.
  • Under Cover Installation (Refer to GROUP 51- Under Cover ).

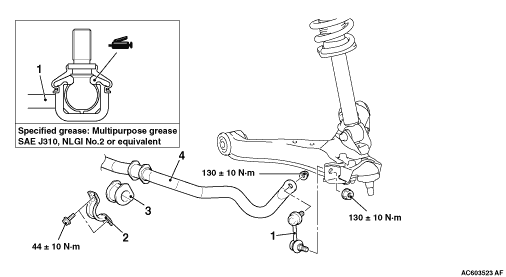

Removal steps


1.
 Stabilizer link assembly


2.
 Stabilizer clamp

>>A<<
 3.
 Stabilizer bushing


4.
 Stabilizer bar

INSTALLATION SERVICE POINT

>>A<< STABILIZER BUSHING INSTALLATION

Install the bushing with its cut line located as shown in the figure.
