Code No.57: Accumulator system (low pressure warning switch malfunction or accumulator pressure too low)








OPERATION



DIAGNOSIS CODE SET CONDITIONS



PROBABLE CAUSES



  • Brake fluid leakage in the hydraulic brake booster (HBB)
  • Malfunction of the accumulator [Integrated with the hydraulic brake booster (HBB)]
  • Malfunction of the pressure switch (for low-pressure warning) [Integrated with the hydraulic brake booster (HBB)]

DIAGNOSIS

STEP 1. M.U.T.-III diagnosis code.
(1)Erase the diagnosis code.
(2)Recheck for diagnosis code.

Q. Is code No.55 set?
Carry out the troubleshooting for code No.55 (Refer to ). Then go to Step 6.
Go to Step 2.

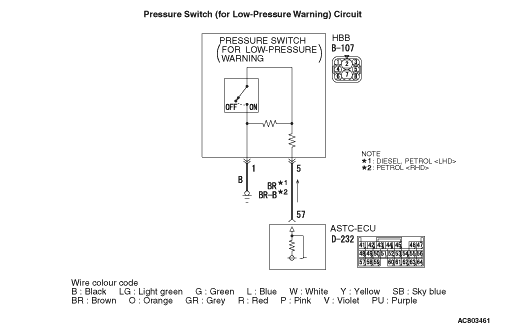

STEP 2. Check the pressure switch (for low-pressure warning) circuit inside the HBB.
(1)Depress the pedal repeatedly more than 40 times until the pedal depressing force feels heavy with the ignition switch at the "LOCK" (OFF) position to release the pressure of HBB power supply system.

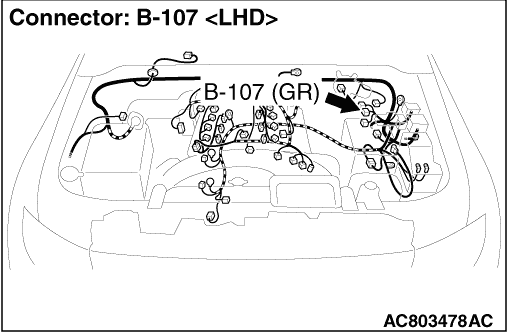

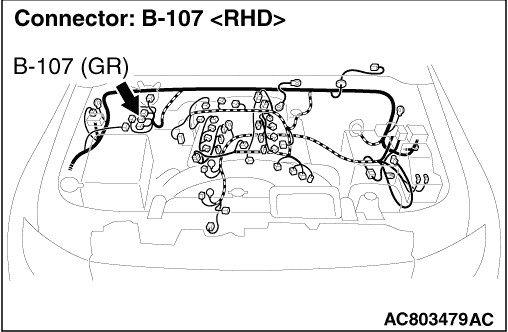

(2)Disconnect HBB connector B-107.
(3)Measure the resistance between the terminals 1 and 5 at the HBB.
OK: Approx. 5.7 kΩ
(4)Turn ON the ignition switch to operate the pump motor, and then check that the pump motor stops.
(5)Measure the resistance value (resistance value at high accumulator pressure) between the HBB-side terminal No. 1 and terminal No. 5.
OK: Approx. 1 kΩ

Q. Is the check result normal?
Go to Step 3.
Replace the master cylinder and hydraulic unit assembly (Refer to ). Then go to Step 6.

STEP 3. Check the leakage of brake fluid from the HBB visually.

Q. Is there leakage of brake fluid from the HBB?
Go to Step 4.
Go to Step 5.

STEP 4. Disassemble and check the HBB.
(1)Remove the HBB (Refer to ).
(2)Disassemble the HBB (Refer to ).
(3)Check the HBB for the following points.

  • Power piston assembly for rust, damage, wear and deterioration
  • Master cylinder piston assembly for rust, damage, wear and deterioration
  • Inside of the hydraulic unit assembly cylinder for rust and damage

Q. Are all of the checked items in good condition?
Assemble the HBB (Refer to ), install the HBB (Refer to ), refill the brake fluid, and bleed the brake line (Refer to ). Then go to Step 5.
Replace the deficient parts, assemble the HBB (Refer to ), install the HBB (Refer to ), refill the brake fluid, and bleed the brake line (Refer to ). Then go to Step 6.

STEP 5. Recheck for diagnosis code.
(1)Erase the diagnosis code.
(2)Recheck for diagnosis code.

Q. Is code No.57 set?
Replace the accumulator (Refer to ). Then go to Step 6.
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunction .

STEP 6. Recheck for diagnosis code.
(1)Erase the diagnosis code.
(2)Recheck for diagnosis code.

Q. Is code No.57 set?
Start over at Step 1.
The procedure is complete.
